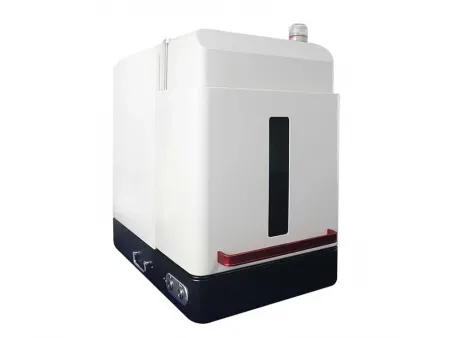

Full Enclosed Desktop Fiber Laser Marking Machine
- Laser wavelength 1064nm
- Marking range 50×50mm~175×175mm
- Beam quality M²<1.5
- Max. line speed 7000mm/s
The full enclosed desktop fiber laser marking machine features an integrated sealed structure that effectively isolates dust, oil stains, and laser scattering, ensuring operations comply with international safety standards (such as CE, FDA). The compact body integrates an anti-vibration base, maintaining excellent marking precision and equipment stability even during continuous high-intensity operation. Furthermore, the fully enclosed design significantly reduces noise and energy consumption, enabling factories to achieve green, efficient, and intelligent marking solutions.
- Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
- Plastics: ABS, PVC, PE, HDPE
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 20W, 30W, 50W
- Laser type fiber laser
- Laser wavelength 1064nm
- Marking range 50×50mm~175×175mm
- Beam quality M²<1.5
- Max. line speed 7000mm/s
- Min. character size 0.05mm
- Min. line width 0.01mm
- Cooling method air cooling
- Power supply 110V/60Hz, 240V/50Hz
- Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)
- Machine dimensions 480×750×740mm
- Package size 500×820×880mm
- Machine weight 75kg
- Package weight 85kg
- 20W laser powerWorking area ≤110×110mm for surface marking
- 30W laser powerWorking area ≤175×175mm for surface marking with a wider area
- 50W laser powerWorking area ≤110×110mm for soft metal cutting (gold, silver, aluminum, etc.)
Laser source
We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.

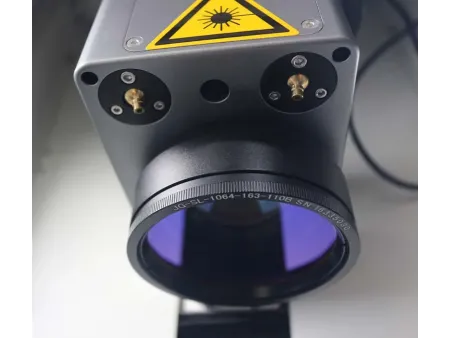

Galvo scanner
The 7110 model galvo scanner is characterized by high-speed scanning of 7000mm/s, primarily used for laser marking and engraving. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
Laptop
Features a major brand Lenovo laptop, equipped with a Windows 10 system and a 14-inch display, to ensure smoother operation of the entire laser equipment.
Column
Enables electric lifting and lowering, accommodating marking for workpieces of different heights without manual adjustment, greatly improving overall work efficiency.
Laser safety warning labels
Play a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fume Extractor
- Cutting fixture (laser engraving vise)
- F-theta lens
- Rotary axis for ring
- Rotary roller
- Rotary axis
- Fiber laser
- Full enclosed laser control cabinet

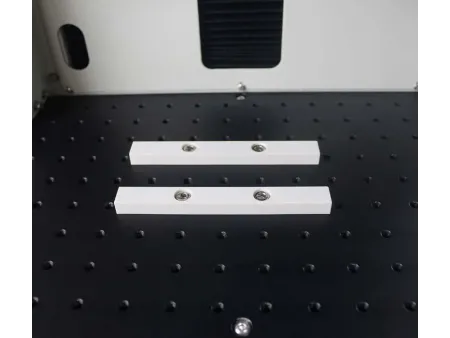

- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Laptop
- Power cord
- USB connection cable
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
