Automatic Intelligent Control Chemical Dosing System
Inline chemical dosing device with automatic control for almost all water treatment requirements of water systems

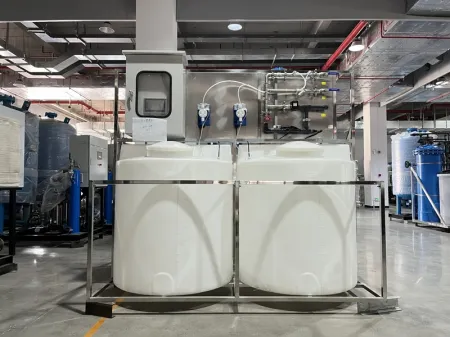

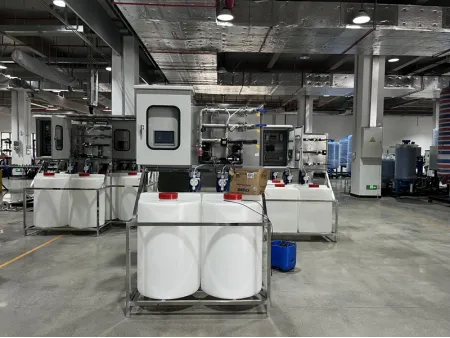

This dosing system continuously monitors and maintains the optimal concentration of chemicals within the water treatment process. It effectively prevents issues such as scaling, corrosion, deposits, and the growth of bacteria and algae. The chemical dosing device includes control cabinet, dosing pumps, buckets, gauges and other accessories. Gauges include pH, conductivity meter, corrosion rate meter and so on. Customer can select according to their specific needs. Customization options are available to meet specific requirements and enhance functionality.
Our water treatment chemical dosing systems are versatile and can be applied to a wide range of systems, including chilled water systems for air conditioning, boiler water systems, wastewater and sewage treatment, water purification systems, greywater treatment, industrial circulating water systems, landscape water treatment, desalination systems, and turbid water systems in steel mills.
System Options
- ECH-A-604 Open Circulating Water System
- ECH-B-604 Closed Circulating Water System
- ECH-C-604 Steam Boiler Water System
| System Options | ECH-A-604 Open Circulating Water System | ECH-B-604 Closed Circulating Water System | ECH-C-604 Steam Boiler Water System |
| Flow Rate of Circulating Water | 0-5000m³/h | 5000-20000m³/h | Above 20000m³/h |
| Evaporation Capacity of Steam Boiler | 0-10m³/h | 10-40m³/h | Above 40m³/h |
| Chemical Dosing Tank | 200L Quantity:1/2/3 Material:PE/SS304/SS316/Q235b | 500L Quantity:1/2/3 Material:PE/SS304/SS316/Q235b | 1000L Quantity:1/2/3 Material:PE/SS304/SS316/Q235b |
| Device Dimensions (A×B×H)[E1] (mm) | 640×640×1800 1300×640×1800 2000×640×1800 | 950×950×1800 1900×950×1800 2900×950×1800 | 2200×2200×1800 2800×2000×1800 3400×2000×1800 |
| Base Size (A×B×H) (mm) | 800×800×100 1500×800×100 2200×800×100 | 1100×1100×100 2100×1100×100 3100×1100×100 | 2400×2200×100 3000×2200×100 3600×2200×100 |
| Power Supply | Single Phase-AC220V-0.5KW | Three Phase-AC380V-2.5KW | Three Phase-AC380V-3.0KW |
For more information on our water treatment dosing system models, feel free to get in touch with us.
- Quality Management System ISO 9001:2000
- Enclosure Protection Rating for Low Voltage Switchgear and Controlgear IEC 144
- Digital Interface for Programmable Instruments ANS 1488
- Binary Logic Diagrams for Process Computation ISA 55.2
- Binary Logic Diagrams for Process Operations ISA-55.3
- This dosing system enables real-time wireless monitoring of equipment operations and parameters. Information can be sent to relevant personnel via SMS, email, or web interface, and can also be accessed through a mobile app for added convenience
- All critical water quality parameters are monitored in real-time using online sensors. Historical data is retained for accurate tracking and analysis, ensuring the reliability and efficiency of the system
- Features multiple digital and analog (4-20mA) input/output capabilities and supports the Modbus communication protocol. This allows seamless integration with DCS or PLS centralized control systems, enhancing overall operational efficiency and control
