Forced Air Valve Bag Filler
Request a Quote

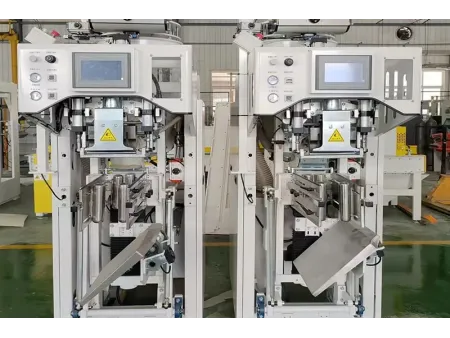

Automatic valve bag filling machine with ultrasonic sealer
- Large valve bags (10-50 kg)
- Speeds between 180-220 bags per/hour
The forced air valve bag filler handles accurate, efficient filling of large valve bags (10-50 kg) with abrasive powdered or granular materials. Using a gentle, continuous low-pressure method, it prevents material damage and separation during filling. Integrated electronic weighing, automatic bag removal, and dust control capabilities ensure precise results within ±200 grams at speeds between 180 and 220 bags per hour.
Applications
Ideal for efficiently packaging dry mortar, sand-based specialty mortars, wall putty powder, gypsum plaster, and other similar construction materials, providing convenient, clean, and labor-saving solutions.
Specifications
| Air consumption | 30m³/h |
| Dust removal air volume | 2000m³/h |
| Dimensions | 2118(1850)×1030×720mm |
| Packaging accuracy | ≤1% (25kg) |
| Bag weight | 10-50kg |
| Class of protection | ≥IP54 |
| Applicable bag size | 320-600mm |
| Bagging rate | 180-400bag/hour |
| Sealing method | None/Ultrasonic |
| Applicable bag type | Paper bag, PE/PP valve bag, paper-plastic composite valve bag |
| Power | 550 2600W |
| Voltage | 380V |
| Air pressure | ≥0.6Mpa |
| Rated current | 2A |
| Weight | 550kg |
Features
- Equipped with an electronic weighing system that includes digital controls with cumulative weight tracking, automatic tare adjustment, zero calibration, and precise drop correction, ensuring consistent and accurate filling results.
- A built-in communication interface enables operators to remotely monitor packaging operations, facilitating easy and centralized management.
- The manual cleaning function allows quick and straightforward clearing of residual material, simplifying maintenance between different product batches.
- A removable air flotation plate is provided for convenient and efficient cleaning, significantly reducing downtime.
- Pressure chambers are available in various sizes, which can be adjusted according to the density of different materials being packaged.
