Request a Quote

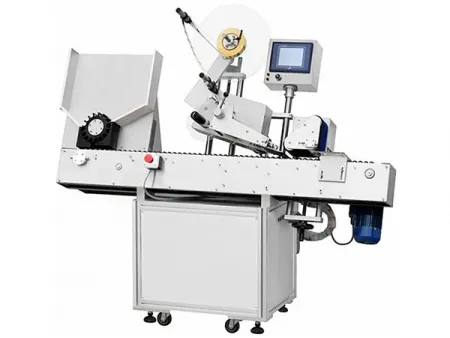

Wrap around labeler for small round containers and cylindrical objects

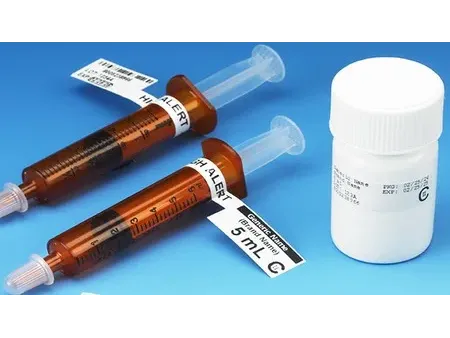

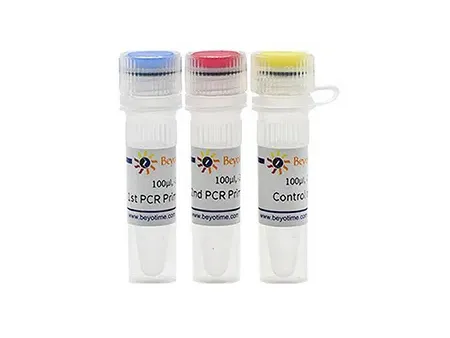

The horizontal small cylindrical product labeling machine is primarily designed for wrapping or semi-wrapping labels on small-sized products such as blood collection tubes, syringes, lipsticks, e-cigarettes, sausages, etc. It is especially suitable for labeling small batches of diverse products, capable of applying self-adhesive labels on flat, curved, cylindrical, and concave-convex surfaces.

Technical Specifications
  • Model: YX-BS
  • Speed: 60-260 bottles per minute

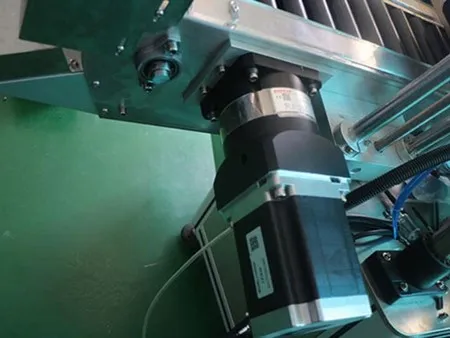

  • Drive Unit: servo control system
  • Bottle Diameter: 12-24mm
  • Bottle Height: 25-95mm
  • Label Height: 20-70mm
  • Label Length: 25-80mm
  • Inner Diameter of Label Roll: 76mm
  • Outer Diameter of Label Roll: 350mm (Max.)
  • Motor Power: 300W
  • Power Supply: AC220V 50/60HZ, single phase
  • Machine Dimensions (L×W×H): 1800×700×1270mm
Working Principle

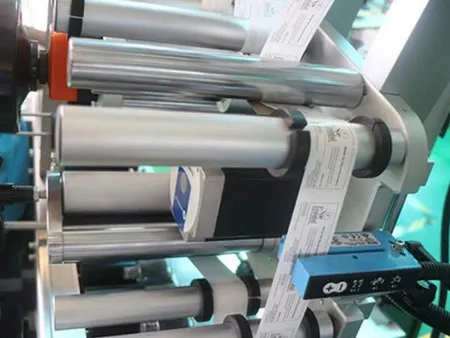

The product and bottle are separated. When the sensor detects the product passing through, it sends a signal back to the labeling control system. The control system then controls the motor to position the label at the appropriate spot on the labeling machine. As the product flows through the labeling device, the label tape causes the product to rotate, and the label is rolled onto it, completing the labeling process.
