Tank Sterilizer
Water tank disinfection device for eliminating bacteria and microorganisms in water storage tanks and water contained
Water storage tanks often face issues with bacterial and microbial contamination due to prolonged water retention. We offer water tank disinfection systems designed to address these challenges, ensuring clean and safe water storage. Available in two configurations, exposed and internal type, each system employs a different method to achieve effective disinfection.
External Type
The external type water tank disinfection system operates by automatically circulating the water from the tank through a disinfection unit using a pump. This continuous treatment ensures that the water remains free from harmful bacteria and microorganisms, maintaining high water quality.
Internal Type
The internal type water tank disinfection system utilizes electrochemical reactions to produce disinfecting agents such as hypochlorous acid, chlorine dioxide, active oxygen, and molecular chlorine. These agents effectively sanitize both the water tank and the water contained within it, providing a robust solution for maintaining water hygiene.

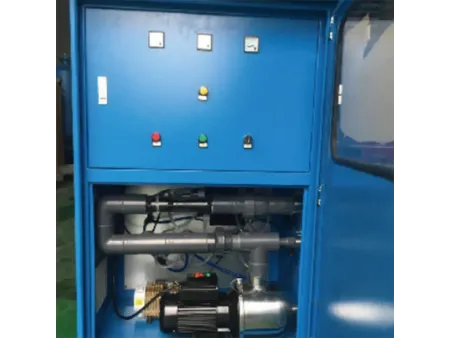

Tank Sterilizer (External Type)
| Model | Water Pump | Total Power (W) | Applicable Tank Volume | |
| Domestic Water Storage Tank (m³) | Firefighting Water Tank (m³) | |||
| Flow rate: 2m³/H Head: 22m Quantity: 1 pc | 600 | 80 | 250 | |
| Flow rate: 4m³/H Head: 23.5m Quantity: 1 pc | 900 | 160 | 500 | |
| Flow rate: 8m³/H Head: 18m Quantity: 1 pc | 1300 | 240 | 750 | |
| Flow rate: 8m³/H Head: 27m Quantity: 1 pc | 2200 | 320 | 1000 | |

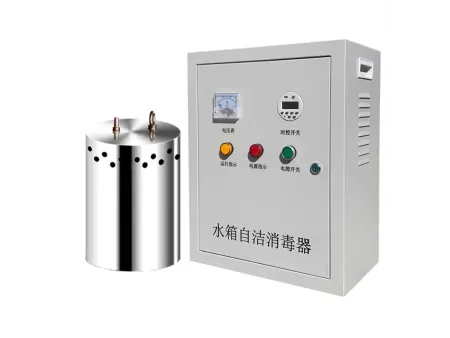

Tank Sterilizer (Internal Type)
| Model | |
| Total Power (W) | 300W |
| Dimensions of Main Unit | 500×400×220 |
| Material of Main Unit | 201 stainless steel |
| Dimensions of Auxiliary Unit | ⌀219×300 |
| Material of Auxiliary Unit | Food grade 304 stainless steel |
| Ozone Pipe Material | High purity quartz |
| Automatic Microcomputer Control System | Yes |
| voltage meter | Yes |
| Gas tube | 10m (standard configuration) |
