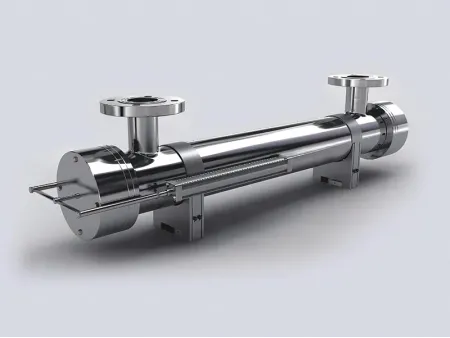

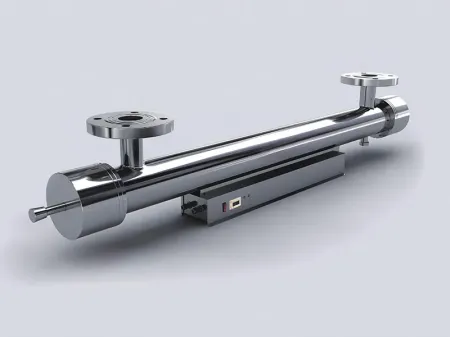

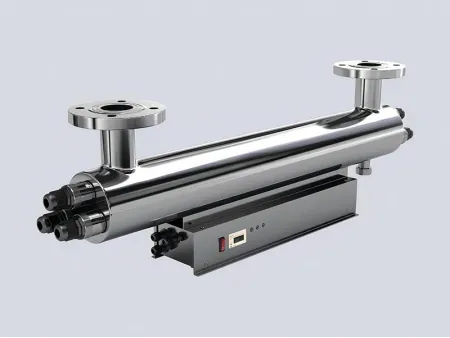

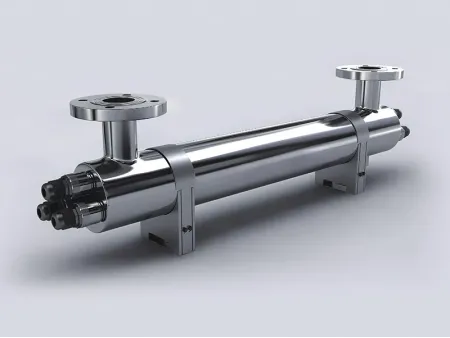

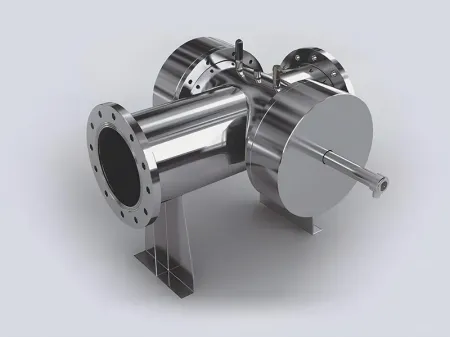

UV Sterilizer
Ultraviolet (UV) disinfection device for chemical-free water treatment to remove microorganisms
Ultraviolet (UV) disinfection is a proven method for ensuring safe, chemical-free water. Utilizing UVC light, which is most effective for sterilization, this device targets the DNA or RNA of microorganisms, rendering them inactive. Unlike chemical treatments, UV disinfection introduces no impurities and leaves no byproducts, making it an environmentally friendly choice. Widely used in various industries, UV sterilizers ensure that water remains pure and safe for all applications.
Suitable for a wide range of applications, including wastewater treatment, swimming pool water treatment, greywater reuse, and pure water processes. This device ensures safe and clean water without the use of chemicals, making it ideal for both civil and industrial use.
| Model | Flow Rate (T/H) | Total Power (W) | Inlet/Outlet Size (mm/inch) | Max. Operating Pressure (kg/cm²) | UV Lamp Fault Alarm System | Reactor Size (L×W×H) (cm) | Control Panel Size (cm) | Ground Screw (cm) | Weight (kg) |
| 0.3 | 10 | 1/2' | 6 | Yes | 30×11×6 | / | / | 5 | |
| 2 | 40 | 1' | 6 | Yes | 100×20×9 | ⌀8.9×25 (diameter×length) | 69×4×⌀1 | 25 | |
| 12 | 160 | 2' | 6 | Yes | 100×30×15.9 | ⌀8.9×25 (diameter×length) | 69×7×⌀1 | 40 | |
| 2 | 40 | DN25/1' | 6 | Yes | 100×32×8.9 | 25×30×12 (width×height×thickness) | 60×4×⌀1 | 45 | |
| 12 | 160 | DN50/2' | 6 | Yes | 100×40×15.9 | 60×7×⌀1 | 70 | ||
| 25 | 280 | DN80/3' | 6 | Yes | 100×50×21.9 | 50×78×25 (width×height×thickness) | 60×11×⌀1.2 | 140 | |
| 30 | 320 | DN100/4' | 6 | Yes | 100×50×21.9 | 60×11×⌀1.2 | 150 | ||
| 40 | 360 | DN100/4' | 6 | Yes | 100×50×21.9 | 60×11×⌀1.2 | 160 | ||
| 60 | 420 | DN15016 | 6 | Yes | 170×57×27.3 | 120×16×⌀1.4 | 210 | ||
| 80 | 560 | DN150/6' | 6 | Yes | 170×57×27.3 | 120×16×⌀1.4 | 220 | ||
| 100 | 700 | DN150/6' | 6 | Yes | 170×57×27.3 | 60×128×30 (width×height×thickness) | 120×16×⌀1.4 | 275 | |
| 125 | 840 | DN150/6' | 6 | Yes | 173×57×27.3 | 120×16×⌀1.4 | 300 | ||
| 150 | 1120 | DN200/8' | 6 | Yes | 173×65×32.5 | 120×20×⌀1.6 | 325 | ||
| 200 | 1400 | DN200/8' | 6 | Yes | 173×72×37.7 | 120×22×⌀1.6 | 350 | ||
| 300 | 2100 | DN250/10' | 6 | Yes | 175×80×42.6 | 120×24×⌀2 | 400 | ||
| 400 | 2520 | DN250/10' | 6 | Yes | 176×95×52.9 | 60×150×40 (width×height×thickness) | 120×28×⌀2.2 | 475 | |
| 600 | 3080 | DN300/12' | 6 | Yes | 176×110×78 | 120×32×⌀2.4 | 600 | ||
| 800 | 3920 | DN350/14' | 6 | Yes | As required | As required | As required | As required | |
| 1000 | 4760 | DN350/14' | 6 | Yes | As required | As required | As required |
