EVMS-360 High Power Ultra Fast Charging Station
Request a Quote
The EVMS-360 high power ultra-fast charging station is a newly launched charging station designed to satisfy the latest generation electric vehicles with ultra-fast high power charging requirements.

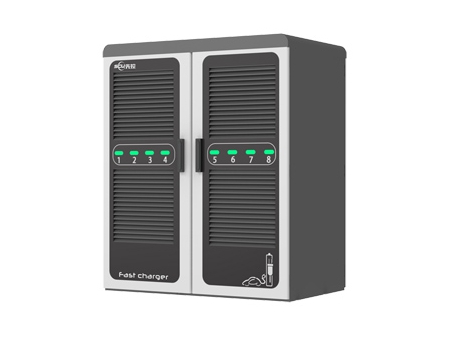

This ultra-fast charging station has a power of 360kW, and is composed of 1 power supply cabinet and 2 charging terminals.
Applications
Public infrastructures such as highway rest areas, gas stations, parking lots, airports, bus stations and more
Applicable vehicles
E-bus or luxury EVs equipped with ultra-large capacity batteries.
Advantages
- Applies to all current and next generation EVs
- Modular designed structure, the power supply cabinet has a power range from 360kW to 500kW
- The charging terminals are removable with furthest distance of 150m
- Wide voltage range: 150V-1000V
- Supports 500A liquid cooled CCS charging cables and connectors
- TFT (thin film transistor) touchscreen
- RFID (radio frequency identification) authorization required
- Low operating noise Customization according to specific requirements
Technical parameters
| Model | EVMS-360 |
| AC input | |
| Power connection | 3P N PE |
| Voltage range | 400 Vac ± 20 % |
| Frequency | 50 Hz or 60 Hz |
| Power factor | > 0.99 |
| Overall efficiency | 95% |
| DC output | |
| Output voltage | 150Vdc to 1000 Vdc |
| Output current | 360A |
| Rated output power | 360 kW |
| General Specifications | |
| Combo DC output（Mode-4） | |
| DC-interface | CCS2 |
| Display | 12.1" TFT color touchscreen |
| RFID system | ISO/IEC14443A/B, Mifare |
| Network connection | 3G (GSM or CDMA) | LAN | Wi-Fi |
| Communication protocols | OCPP 1.6 |
| Environment | Indoor/outdoor |
| Operating temperature | -35ºC-60ºC ( -20ºC to -30ºC, heating required) |
| Storage temperature | -40 ºC to 70 ºC |
| Operating humidity | ≤95% non-condensing |
| Altitude | Up to 1000m |
| Protection level | IP54 , IK10 |
| Acoustic noise | < 55 dB |
| Dimension (W*D*H)mm | Power supply cabinet:1300*750*1950mm Charging terminals: 320*280*1740mm |
| Compliance and safety | EN 61851, EN 62196, DIN 70121, ISO 15118 |
