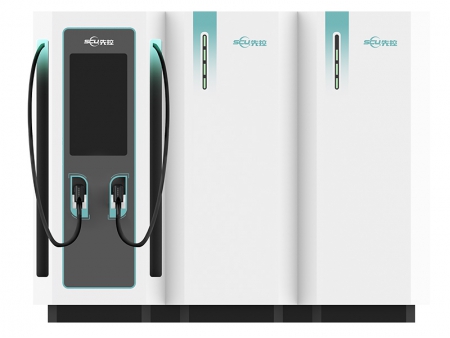

EVMS ONE EV Charging Station with Integrated Battery
EVMS ONE is an integrated battery storage EV charging system, featuring a built-in LFP (LiFePO₄) battery and PCS module within a single cabinet, providing an efficient and reliable charging solution. It is PV-ready, supporting eco-friendly, zero-carbon operations. The EV charging system enables off-grid charging and peak-valley energy arbitrage, allowing energy storage and charging during low electricity price periods—ideal for reducing energy costs while ensuring reliable charging even in areas with weak grids.
Applications
The EV charging station is suitable for areas with limited power infrastructure, parks with large peak/off‑peak price gaps, temporary event sites, charging station expansion buffer, and emergency energy supply points.
Compatible Vehicles
All electric vehicles compliant with CCS2, CHAdeMO, or GB/T standards (e.g., passenger cars, logistics vehicles, and buses).
Advantages
- The EV charging station offers off-grid charging without grid constraints, providing flexible charging stations for EV, anywhere.
- Promoting environmental sustainability with PV integration, enabling zero-carbon EV charging.
- Intelligent peak shaving with peak-valley arbitrage system, which reduces electricity costs.
- The battery-integrated EV changer offers modular battery packs for convenient maintenance
Technical parameters
| Model | ||
| Power range | 60kW to 240kW | 320kW to 480kW |
| Housing | Galvanized coating steel | |
| Dimensions (H*W*D) (mm) | 1900*2200*1000 | 1900*4400*1000 |
| Input voltage | 400V (±10%) | |
| Connectors (NACS, GB/T, CHAdeMO compatible) | Dual CCS2 | 250A | 5m cable | |
| Output voltage | 300-1000VDC | |
| Battery type | LFP | |
| Battery capacity | 76.8kWh | 76.8kWh*2 |
| Battery voltage | 768VDC | |
| Discharge rate | 3C | |
| Battery cabinet | 1 | 2 |
| Battery lifecycle | 25℃ 2C 80%DOD EOL80% ≥4000 times | |
| Cooling | Battery (HVAC) EVSE (air cooling) | |
| Protection | IP55 | |
