EVDS Series GB/T DC Fast Charging Station
Request a Quote

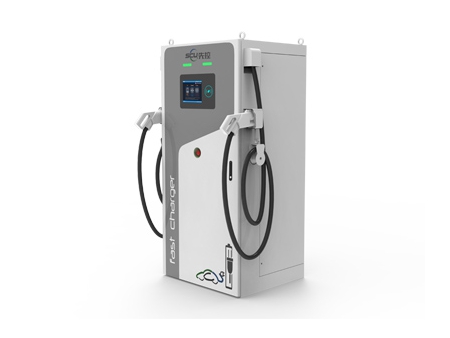

The EVDS BG/T series is an intelligent, integrated DC fast charging station, comprised of the monitoring unit, power distribution unit, and power modules, with an overall power range of 30 to 360kW.
The EVDS series DC fast charging stations are also designed with emergency protection and alarm functions to ensure safety.
Applications
Public infrastructures such as highway rest areas, gas stations, airports, parking lots, bus stations, freight stations and etc.
Applicable vehicles
Electric vehicles, E-buses, trucks and other fast chargeable vehicles.
Advantages
- Wire power range: 30kW-360kW, realizes single, dual or quadra outlet charging at the same time.
- Wire power range: 30kW-360kW, realizes single, dual or quadra outlet charging at the same time. Three modes when charging with dual outlets: equalizing charge (each charging outlet shares equal power), rotational charge (maximum power on one charging outlet, and take turns), and flexible charging (power is flexibly distributed).
- Compact structure for easier transportation and installation, takes less land space.
- Output voltage range: 200V-500V; 300V-750V (adjustable).
- High adaptability for temperature ranges and isolated heat dissipation air ducts. Heat dissipation is separated from the control circuits to ensure a totally dust-free performance.
- Wide AC input range, and high adaptability to different utility grids, 3 phase 3 wire input without null line.
- TFT color touchscreen for easier operation
- Emergency protection and alarming function
- Charging protection function: the charging process will suspend automatically in the event of a BMS communication malfunction, disconnection, battery over temperature, or over voltage
- Emergency stop function
- Multiple communication interfaces: CAN, RS485/RS232, Ethernet, 3G, 4G wireless networks to access operation management platform
- The charging piles have an insulation monitoring function and will automatically disconnect to ensure a safe charging when the insulation level is low.
Technical parameters
Model | Floor Type DC Station | |||||
EVDS-500/360 | EVDS-500/180 | EVDS-500/120 | EVDS-500/60 | EVDS-500/30 | ||
EVDS-750/360 | EVDS-750/180 | EVDS-750/120 | EVDS-750/60 | EVDS-750/30 | ||
System capacity | 360kW | 180kW | 120kW | 60kW | 30kW | |
Module capacity | 15kw | |||||
Input | ||||||
Rated input voltage | 380VAC | |||||
Range of input voltage | 260V~530V (260~304VAC, output power derating 50%) | |||||
Input frequency | 50/60Hz; Range: 45Hz~65Hz | |||||
Input harmonic current component | <3% | |||||
Input power factor | ≥0.99 | |||||
Initial inrush current | ≤ 110% peak current when operating | |||||
Output | ||||||
Output voltage | 200VDC-500VDC / 300VDC-750VDC | |||||
Output voltage tolerance | ≤0.5% | |||||
Output current tolerance | Current≥30A, ≤1%; Current < 30A, ≤0.3A | |||||
Current regulation accuracy | ≤1% | |||||
Voltage regulation accuracy | ≤0.5% | |||||
Peak to peak noise voltage of DC output | ≤0.5% (0MHz-20MHz) | |||||
Soft start time | 3-8s | |||||
Overall efficiency | ≥95% | |||||
BMS auxiliary power supply | 12V/10A | |||||
Network connection | Ethernet, CAN/RS485, 3G/4G | |||||
Charging mode | Automatic charging or manual charging (optional) | |||||
Protection level | IP55 (outdoor) | |||||
Acoustic noise | ≤50dB | |||||
Operating temperature | -20℃~60℃ | |||||
Operating humidity | ≤95% non-condensing | |||||
Altitude range | ≤2000 meter; derating above 2000 meter | |||||
Dimension (W*D*H) | 1300*750* 1950mm | 650*750* 1950mm | 960*450* 1950mm | 600*450* 1850mm | 450*450* 1750mm |
