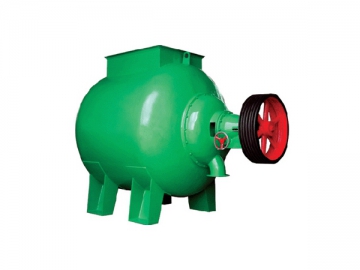

Horizontal Hydrapulper
Request a Quote
View All: http://paper-equipment.com
The ZDS series is a horizontal hydrapulper, and has a capacity of 5-60t/d. The paper equipment is equipped with a disintegrating device that applies P and S Vokes rotors, and ensures a low energy consumption, but excellent disintegrating effects. It is suitable for continuous or batch degradation of chemical pulps, semi-chemical pulps, pulp board and wastepaper.
The horizontal hydrapulper is a necessary piece of pulping equipment for the pulping industry. It is ideal for fiber separation, pulp purification and roughing.
Technical Parameters of Horizontal Hydrapulper| Model | Nominal volume (m³) | Capacity (t/d) | Sieve diameter (mm) | Consistency (%) | Motor power (Kw) |
| 1m³ | 5-10 | 6-20 | 2-5 | 11 | |
| 2m³ | 15-20 | 6-20 | 2-5 | 22 | |
| 3m³ | 25-35 | 6-20 | 2-5 | 37 | |
| 5m³ | 35-45 | 6-20 | 2-5 | 45 | |
| 8m³ | 40-60 | 8-20 | 2-5 | 75 |
