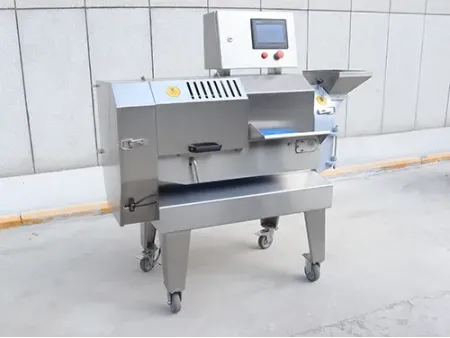

Multifunctional Vegetable Cutting Machine (Double Head)

Multifunctional Vegetable Cutting Machine (Double Head)
Multifunctional Vegetable Cutting Machine (Double Head)
Multifunctional Vegetable Cutting Machine (Double Head)
Request a Quote
DQC140

Vegetable Processing Equipment

The multifunctional vegetable cutting machine features an advanced inverter system, which allows a single inverter to control three motors. It runs on a standard single-phase ~220V power supply and drives three three-phase ~220V motors with adjustable speed. This setup ensures smooth operation, strong cutting performance, and low noise. The cutting machine is well-suited for use in university canteens, large-scale cafeterias, central kitchens, and industrial vegetable processing facilities.

Specifications
  • Model DQC140
  • Voltage (V) 220
  • Power (kW) 3
  • Applications root vegetable/leaf vegetable cutting (shred/dice/slice/segment)
  • Capacity (kg/h) 800-1000 (total), 600-800 (shred), 600-800 (slice), 800-1000 (dice)
  • Customizable size of slice (mm) 3/4/5/6 (optional)
  • Customizable size of dice (mm) 10×10/15×15/20×20 (optional)
  • Customizable size of shred (mm) 3×3/4×4/5×5/6×6 (optional)
  • Material of machine housing 201/304 stainless steel
  • Material of blade lCrl3
  • Operation panel CNC
  • Certificate CE/1SO
  • Width of conveyor belt (mm) 138
  • Machine dimensions (mm) 1380×660×1340
  • Weight (kg) 183
  • Knob control and touch panel control are available for selection.

Features
  • Constructed from durable 304 stainless steel, the cutting machine can produce thick and thin slices, dices, shreds, strips, and segments by simply changing the cutting blade.
  • User-friendly knob controls allow precise adjustment and easy operation.
  • A specially widened 140 mm feed inlet, combined with a rotary cutter, enhances processing efficiency

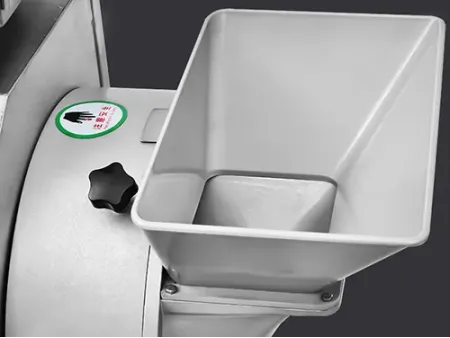

  • The wide feed hopper accommodates root vegetables with ease
  • Fitted with universal casters for effortless mobility
