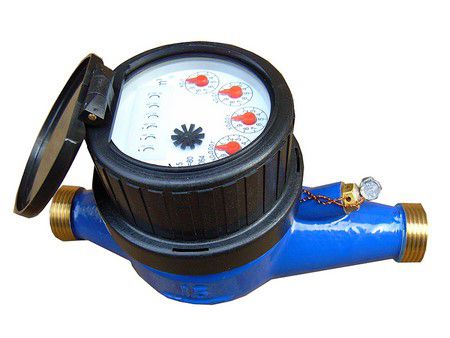

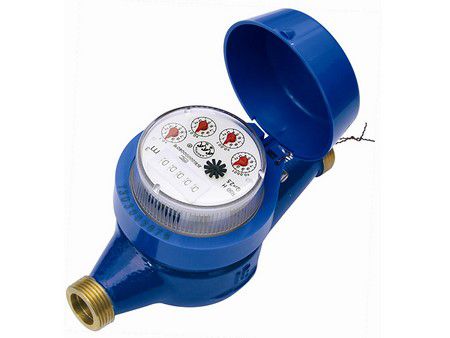

Super Dry Dial Water Meter

Request a Quote

View All: http://smartwater-meter.com/2-1-2-super-dry-dial-water-meter.html

Vane wheel water meter

Our series of super dry dial water meters feature a magnetic coupling transmission to ensure that the counting mechanism is completely isolated from the water flow. This design guarantees a clean and clear meter face, making it easy to read your water usage at any time. Beyond their practicality, these meters boast a compact structure, sleek design, stable performance, and a long service lifespan.

Specifications

Nominal diameter	Approval ratio R	Overload flowrate Q4	Permanent flowrate Q3	Transitional flowrate Q2	Minimal flowrate Q1	Resolution of reading	Maximum reading
mm	Q3/Q1	m³/h				m³
15	80	3.1	2.5	0.050	0.031	0.00005	99,999
	100			0.040	0.025
20	80	5	4	0.080	0.050	0.00005	99,999
	100			0.064	0.040
25	80	7.9	6.3	0.126	0.079	0.00005	99,999
	100			0.101	0.063
32	80	12.5	10	0.200	0.125	0.00005	99,999
	100			0.160	0.100
40	80	20	16	0.320	0.200	0.00005	99,999
	100			0.256	0.160
50	80	31	25	0.500	0.313	0.00005	99,999
	100			0.400	0.250

Dimensions

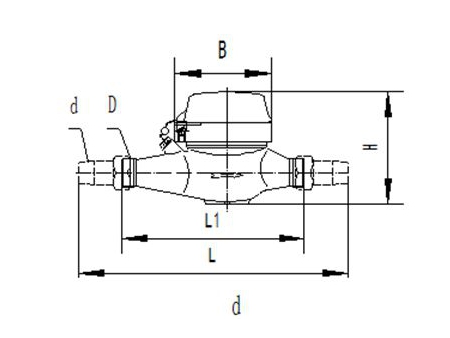

Super Dry Dial Water Meter (horizontal installation)

Nominal diameter	Length L1	Length L	Width B	Height H	Threaded connection
mm					D	d
15	165	259	89	102	G¾B	R1/2
20	190	294	89	102	G1B	R3/4
25	225	345	98	124	G1¼B	R1
32	230	354	104	124	G1½B	R11/4
40	200	328	112	130	G2B	R11/2
50	245	389	124	152	G2½B	R2

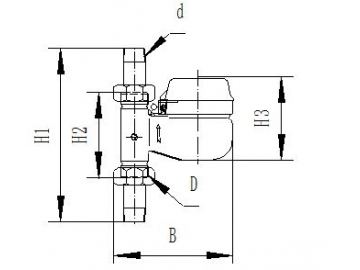

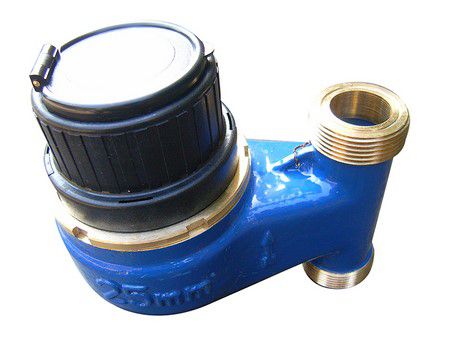

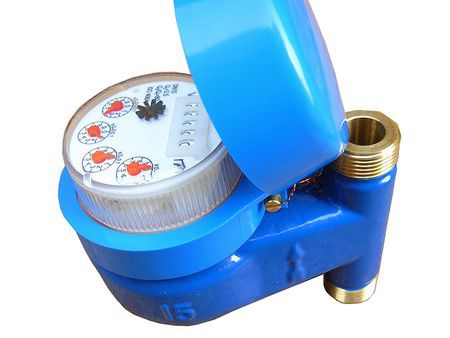

Super Dry Dial Water Meter (vertical installation)

Nominal diameter	Height H1	Height H2	Height H3	Width B	Threaded connection
mm					D	d
15	194	100	99.5	133	G¾B	R1/2
20	204	100	99.5	137	G1B	R3/4
25	228	108	122.6	166	G1¼B	R1
32	274	150	133.6	220	G1½B	R11/4
40	278	150	133.6	228	G2B	R11/2

Applications

Ideal for home water systems, they provide accurate readings for domestic water consumption.
These meters are perfect for businesses, offering reliable measurements for commercial water usage.
In industrial settings, they play a vital role in monitoring and measuring water consumption, contributing to efficient utility management.

Working Conditions

Pressure class: MAP10
Pressure loss class: Δp63
Upstream flow field sensitivity class: U10
Downstream flow field sensitivity class: D5
Standard compliant: GB/T 778.1~3-2007(ISO4064-1~3:2005,IDT)
Temperature class: cold water meter: T30; hot water meter: T30/T90
