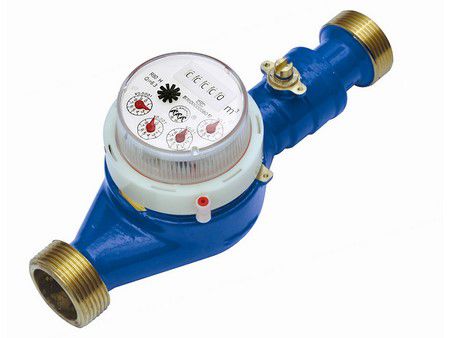

Multi-Jet Super Dry Dial Water Meter
Our multi-jet super dry dial water meters stand out for their robust multi-jet dry core, delivering superior freeze resistance and stability through their magnetically driven impellers. These water metering devices are designed to resist disturbances from waterborne particles and ensure smooth operation of the counting mechanism and consistently clear readings, leading to exceptional measurement accuracy. Beyond this series, we also provide a range of innovative meters, including multi-jet rotary vane wet dial, multi-jet rotary vane dry dial, and multi-jet rotary vane wet dial leak-proof models. Each of these is engineered with our in-house developed compact, lightweight mechanisms for heightened sensitivity and low-torque valves, offering easy operation, reduced energy consumption, and extended durability.
| Nominal diameter | Approval ratio R | Overload flowrate Q4 | Permanent flowrate Q3 | Transitional flowrate Q2 | Minimal flowrate Q1 | Resolution of reading | Maximum reading |
| mm | Q3/Q1 | m³/h | m³ | ||||
| 15 | 80 | 3.1 | 2.5 | 0.050 | 0.031 | 0.00005 | 99,999 |
| 100 | 0.040 | 0.025 | |||||
| 20 | 80 | 5 | 4 | 0.080 | 0.050 | 0.00005 | 99,999 |
| 100 | 0.064 | 0.040 | |||||
| 25 | 80 | 7.9 | 6.3 | 0.126 | 0.079 | 0.00005 | 99,999 |
| 100 | 0.101 | 0.063 | |||||

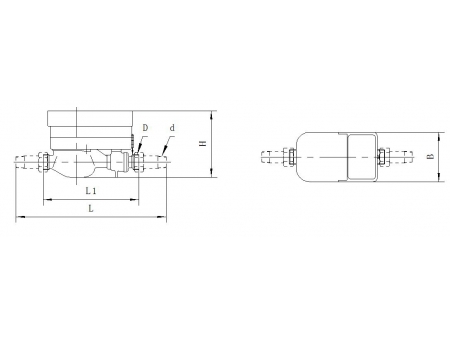

| Nominal diameter | Length L1 | Length L | Width B | Height H | Threaded connection | |
| mm | D | d | ||||
| 15 | 165 | 259 | 86 | 116 | G¾B | R1/2 |
| 20 | 195 | 299 | 86 | 116 | G1B | R3/4 |
| 25 | 225 | 345 | 86 | 116 | G1⅓B | R1 |
Primarily aimed at applications requiring precise water usage measurement, these meters excel in environments like chemical industries, manufacturing sector water analytics, and detailed residential water usage analysis, ensuring accurate and reliable data for diverse needs.
- Temperature class: cold water meter: T30; hot water meter: T30/T90
- Pressure class: MAP10
- Pressure loss class: Δp63
- Upstream flow field sensitivity class: U10
- Downstream flow field sensitivity class: D5
