Mechanical water meter

Our single-jet water meters, which are a type of mechanical meters, are designed for measuring smaller water flows and excel in various applications. These meters are widely used in residential water metering and commercial and small industrial settings. They're also effective in monitoring water usage in public facilities and institutions.

Specifications

Nominal diameter	Approval ratio R	Overload flowrate Q4	Permanent flowrate Q3	Transitional flowrate Q2	Minimal flowrate Q1	Resolution of reading	Maximum reading
mm	Q3/Q1	m³/h				m³
15	80	3.1	2.5	0.05	0.031	0.00005	99,999
20	80	5	4	0.08	0.05	0.00005	99,999
25	80	7.9	6.3	0.126	0.079	0.00005	99,999

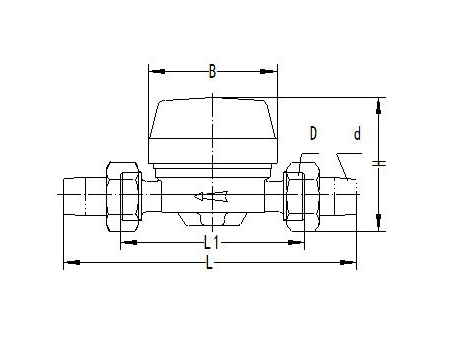

Dimensions

Nominal diameter	Length L1	Length L	Width B	Height H	Threaded connection
mm					D	d
15	165	203	82	88	G¾B	R1/2
20	195	233	82	90	G1B	R3/4
25	225	250	82	94	G1⅓B	R1

Features

Vacuum-sealed to prevent fogging, the dial stays clear and readable over extended periods.
Each meter meets the ISO 4064 Class B standard, ensuring accuracy in every reading.
Available with natural or coated copper casings to match your specific needs.
Comes with a built-in filter at the water inlet to ensure clean and unobstructed flow.
Can be equipped with a pulse output feature for advanced monitoring.
Suitable for cold water applications up to 50°C and hot water up to 90°C.
Available in water pressure ratings of ≤1MPa or 1.6MPa (10bar or 16bar), catering to various system requirements.

Working Conditions

Temperature class: cold water meter: T30; hot water meter: T30/T90
Pressure class: MAP10
Pressure loss class: Δp63
Upstream flow field sensitivity class: U10
Downstream flow field sensitivity class: D5
