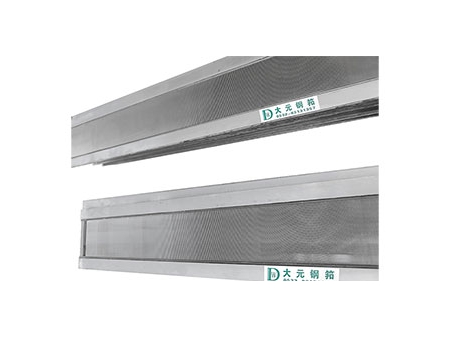

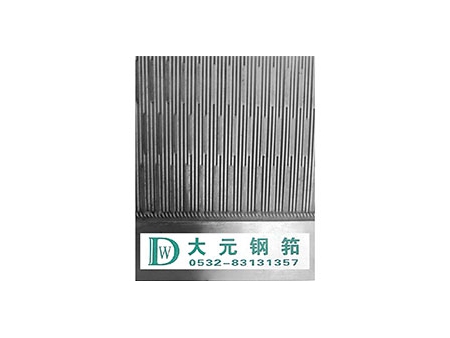

Water Jet Loom Reed
Request a Quote
Stainless steel reeds for water jet looms (suitable for all models and series)
This water jet loom reed is manufactured by soldering stainless steel dents to stainless steel channels. We also offer custom resin-bonded reeds to meet specific customer requirements.
The reed features a perfectly flat surface, uniform dent spacing, and a polished, smooth finish. Its exceptional wear resistance ensures stable performance and a long service life during high-speed weaving.
Dimensions
| Item | Symbol | Scale (mm) |
| Reed number | Customizable (Per customer request) | |
| Total width | L | ≤6000 |
| Working width | L₁ | Customizable (Per customer request) |
| Total height | H | 90-225 |
| Reed dent width | b | 2.2/4.0 |
| Height of top reed rib | h₁ | 18 |
| Height of bottom reed rib | h₂ | 18 |
