Paper Folder (4 Buckles and 1 Knife)
Request a Quote

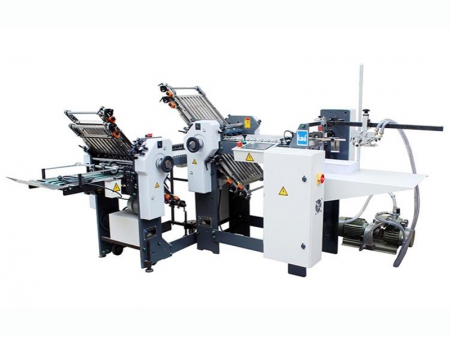

KMD’s 360T 4 buckles + 1 knife paper folder is equipped with 4 buckles and 1 knife. The first fold of the paper by the 4 buckles can achieve 4 times parallel folding, while the second fold can achieve single cross folding.
Parameters- Max feeding sheet size (W*L) : 360*750mm
- Min feeding sheet size (W*L) : 50*100mm
- Sheet range : 40-157g
- Max folding roller speed : 180m/min
- Max. height of paper heap : 500mm
- Machine power : 2.7kw
- Machine net weight : 400kg
- Overall dimension(L*W*H) : 2800*1600*1415mm
- Max folding knife stroke : 200times/min
