Design organization: EMS-TECH, Canada

Drawing refining and manufacturer: SDHM Heavy Machinery

Location: Quebec Ore Plant

Project: 7500t/h reclaimer + 6000t/h stacker

Explanation
The bulk material handling stacking conveyor is a highly efficient type of continuous loading and unloading machinery that is primarily used for loading and unloading of bulk materials in cargo terminals, steel plants, thermal power plants, mines, and other locations. Backed by years of experience, SDHM Heavy Machinery is a Chinese company with the expertise needed to be a professional metal welded steel structure manufacturer to meet all customized client requirements.

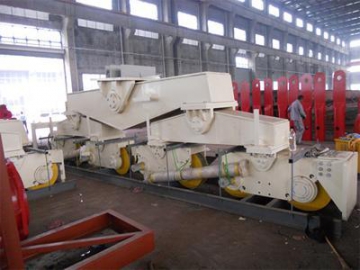

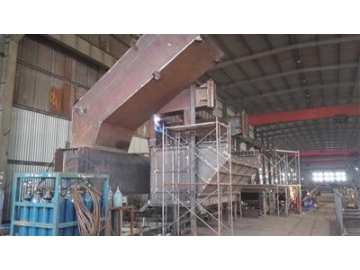

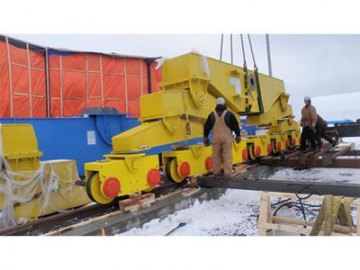

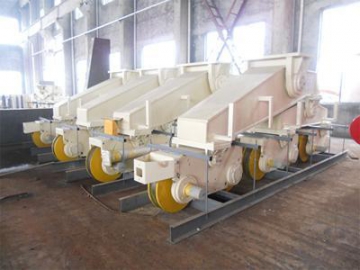

The project was designed by EMS-TECH, Canada, with the cantilever of the conveyor being 55 meters long. The drawings were refined and examined by our technicians, then we were subsequently responsible for the production after buying the steel and other raw materials needed. We use subsection manufacturing in the machining process, during which the bucket wheel, counterweight beam, luffing mechanism, trail car, cart, balance truss and mechanical axis pin were purchased by Wuxi SDHM. After manufacturing, the conveyor was delivered to the customer for examination and acceptance, then transported to Canada for site installation. This specific conveyor is suitable for working environments as cold as -20 Celsius.

Design organization: DEMUTH

Manufacture organization: SDHM Heavy Machinery

Location: CMPC yard, Brazil

Project: 800t/h bulk material handling stacking conveyor

Explanation

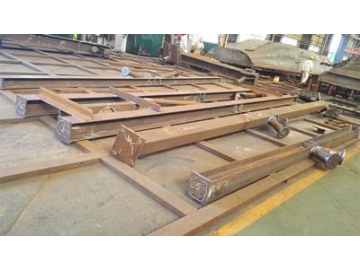

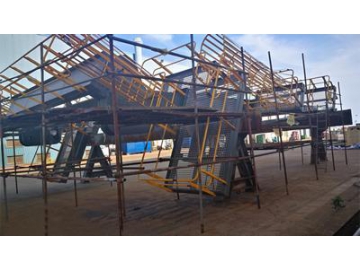

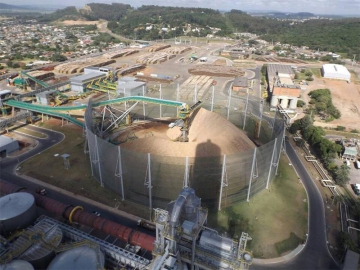

The 800t/h bulk material handling stacking conveyor was designed by DEMUTH for use in a CMPC sawdust yard in Brazil for the transfer, stacking and storage of materials.

Design organization: EMS-TECH INC

Drawing refining: SDHM Heavy Machinery

Manufacture organization: SDHM Heavy Machinery

Location: PT Kaltim Prima Coal (KPC) coal yard

Project: 7500t/h reclaimer + 6000t/h stacker

Explanation

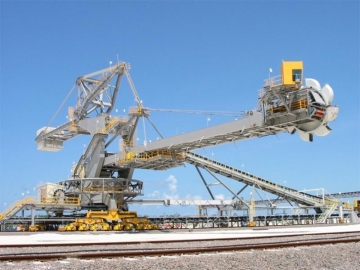

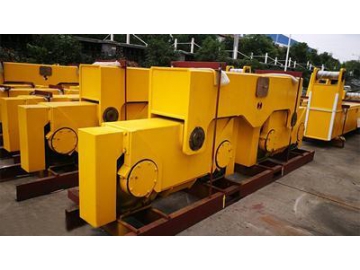

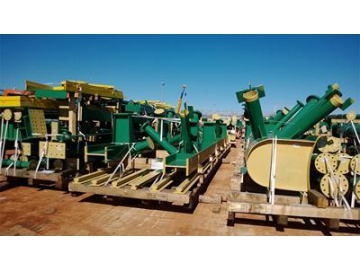

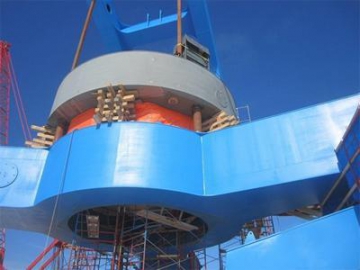

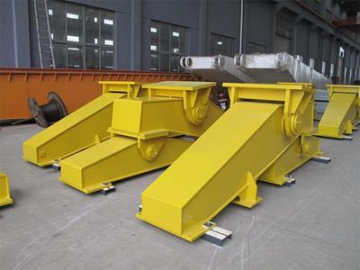

The bulk material handling stacking conveyor was designed by EMS-TECH, then machined and manufactured by us here at Wuxi SDHM. After testing and assembly, it was delivered to the customer for installation and debugging at KPC Wharf in Indonesia. The project included a 7500t/h reclaimer and a 6000t/h stacker, among which the bucket wheel, counterweight beam, luffing mechanism, trail car, cart, balance truss, and mechanical axis pin were all manufactured by Wuxi SDHM.

Here is a project of our bulk material handling stacking conveyor, and our company provides all kinds of custom steel structures for heavy equipment. We have supplied large welded steel structures like stacker structure, reclaimer structure, port steel structure, and mining structure for many brand companies. By using quality raw materials and complete manufacturing equipment, we offer quality heavy duty steel structures for global customers.
