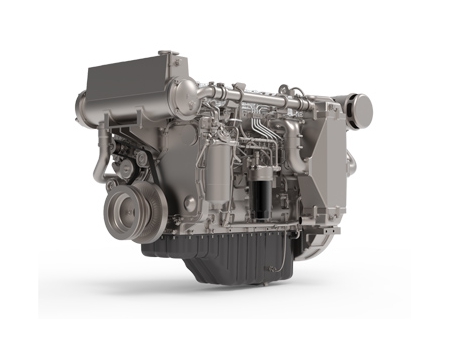

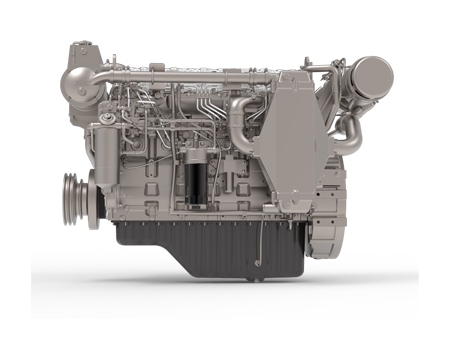

D Series Marine Engine

D Series Marine Engine
D Series Marine Engine
D Series Marine Engine
Request a Quote
Description

The D series engine is a new generation diesel engine meticulously crafted by SDEC using advanced European and American engine technology, in conjunction with AVL and SWRI (Southwest Research Institute), and in accordance with North American heavy-duty diesel engine standards. It is an outstanding representative of the technologically advanced mature models with similar displacement in China, and the social inventory of this series of products exceeds 1 million units. This series (D683) marine diesel engine is developed based on the needs of high-speed boats in China. It has advantages such as compact structure, strong power, good economy, and low vibration and noise. It can meet various application in high-speed patrol boats, yachts, traffic boats, work boats, as well as ships such as passenger ships and ferries, as well as the 180-259 kW marine generator set market.

Model D683/SC9D
Type In-Line Type, Water-Cooled, 4-Stroke, Wet Cylinder Liners
Bore/Stroke 114x135mm/114x144mm
Min. Fuel Consumption 195g/kW.h
Starting Method Electric Start
Firing Sequence 1-5-3-6-2-4
Noise ≤102dB(A)
Crankshaft Rotation Direction (facing the flywheel) Counterclockwise
Cylinder No. 6
Displacement 8.3L/8.9L
Oil Consumption 0.3g/kW.h
Turbocharged CCS/IMOⅡ
Flywheel and Flywheel Housing D683: SAE2#&11.5#; SC9D: SAE1#&14#
Engine Overhaul Period 20000h
Net Weight 800kg/950kg
Dimensions (LxWxH) 1420x837x1093mm(D683) 1476x930x1237mm(SC9D)
  • The 6-hole high pressure fuel injector is combined with a w-shaped combustion chamber to optimize air-fuel mixing. Adopting an efficient fuel cooler provides economic application range in a wide power range.
  • The designs of wet alloy cast iron cylinder liner, forging reinforced crankshaft, crankshaft bearing and connecting rod bearing with strong bearing capacity, water cooled exhaust manifold and electronic monitoring instrument monitored engine running are used to ensure the safe operation and minimize downtime of the engine.
  • Optimized combustion characteristics, coupled with a turbocharger and intercooling technologies can reduce the pressure rise rate during combustion and result in soft and full combustion.
  • High precisely machined parts enables engine operation smooth with low vibration and noise.
  • With compact bore spacing, low piston compression height and integrated design of parts, all the accessories are integrated on the cylinder block, making the size greatly reduced with light weight and convenient maintenance.
Model Type Displacement (L) Rated Power(kW) Rated Power(HP) Speed(rpm) Aspiration Fuel Control System Output Interface Weight (kg) Certificate Emission
D683ZLCA3B 6 Cylinders / In-Line 8.3 219 298 2300 TA Mechanical SAE 2#/11.5' or SAE 1#/14' 800 CCS IMO TIER II
D683ZLCA8B 6 Cylinders / In-Line 8.3 228.5 310 2330 TA Mechanical CCS IMO TIER II
D683ZLCA9B 6 Cylinders / In-Line 8.3 259 352 2430 TA Mechanical CCS IMO TIER II
SC9D250.18CA1 6 Cylinders / In-Line 8.8 180 244 1800 TA Mechanical 900 CCS IMO TIER II
SC9D280.18CA1 6 Cylinders / In-Line 8.8 202 274 1800 TA Mechanical CCS IMO TIER II
SC9D280.21CA1 6 Cylinders / In-Line 8.8 202 274 2100 TA Mechanical CCS IMO TIER II
SC9D300.21CA1 6 Cylinders / In-Line 8.8 216 294 2100 TA Mechanical CCS IMO TIER II
SC9D320.18CA1 6 Cylinders / In-Line 8.8 230 312 1800 TA Mechanical CCS IMO TIER II
SC9D340.21CA1 6 Cylinders / In-Line 8.8 245 333 2100 TA Mechanical CCS IMO TIER II
