Dry Laminator A200
Request a Quote

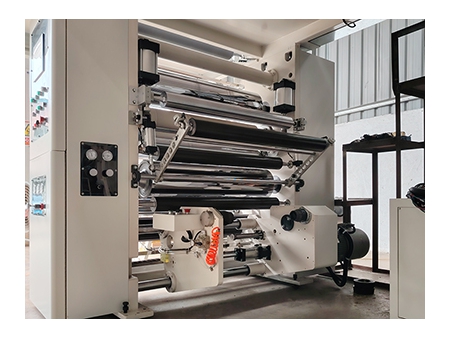

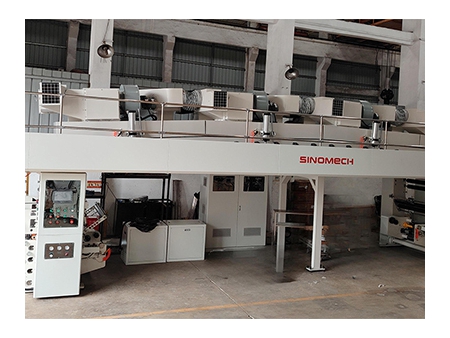

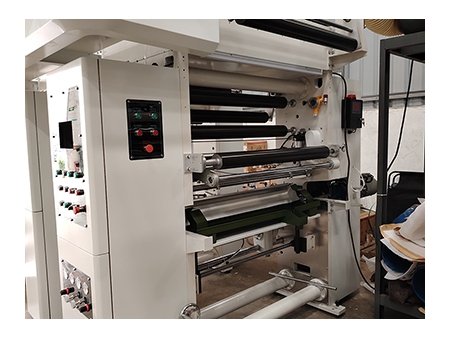

Dry Laminating Machine
In response to the mass demand of various materials and multiple methods in flexible packing markets, drying laminating machine was developed as the ultimate laminating solution. With high level of automation, the taper tension settings can be easily adjusted on the touch screen according to different technology and process applications. The guiding rollers in the drying tunnel are driven by the servo motor, providing smooth laminating results in a precise manner. The dry laminating machine features high productivity and minimized loss, enabling it to be a great option for flexible packaging.
- Max laminating speed: 200mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800mm
- Max rewinding diameter: 800mm
- Reel fixing: Shafted
- Length of drying section: 10m (2.5mx 4)
- Machine dimensions: 12mx 3.2m x 3.8m
Features
- Suitable substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Coating unit: Gravure roll coating system for smooth coating
- Drying section: 4 sectional drying hood made of stainless steel is suitable for both solvent-based and water-based adhesives. Using hot air recycling system allows for energy saving.
