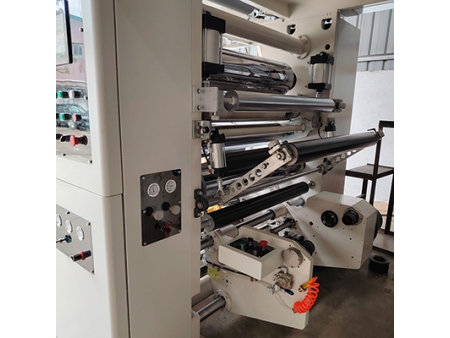

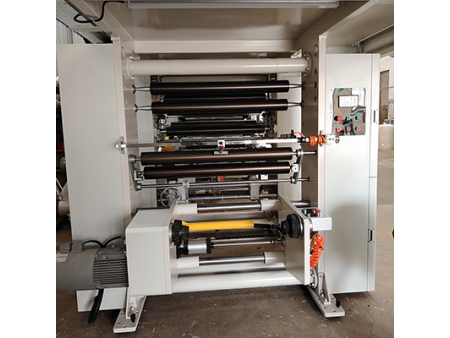

Dry Laminator with Turret Winders A200T
Request a Quote
Dry Laminating Machine
The dry laminating machine features outstanding design, high reliability & safety and easy operation. This lamination equipment is designed with turret winders, providing unmatched efficiency in the lamination process. Our know-how about web handling & tension control, along with the ability to register coatings enables the dry lamination machine to be a great option for laminating of various materials. In addition, the lamination machine comes with a high-efficient drying system, and the low-waste automatic splicing process can perform well on plastic laminating.
- Max laminating speed: 200mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800mm
- Max rewinding diameter: 800mm
- Reel fixing: Shafted
- Length of drying section: 10m (2.5m x 4)
- Machine dimensions: 16m x 4.5m x 4.2m
Features
- Suitable substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Coating unit: Gravure roll coating system for smooth coating
- Drying section: 4 sectional drying hood made of stainless steel is suitable for both solvent-based and water-based adhesives. Using hot air recycling system allows for energy saving.
- Unwinders and rewinder: Non-stop winders with flying splice system
