Request a Quote

The ZENYER 200AS egg washer is made of strong stainless steel for optimal durability and hygiene. This egg cleanser processes 2000 eggs an hour and satisfies egg cleaning requirements for small-sized cage-free farms.

The 200AS egg washer has a compact structure and occupies minimal space.

Specifications
Product name Egg cleaning machine
Product code 200AS
Model ZYX-J1-1
Capacity 2,000 eggs/hour
Material Stainless steel
Power* 3.9 KW
Voltage* 220V, 50HZ, single phase
Dimension(L×W×H) 3.9*0.5*1.55 M
Net weight* 250KG
Gross weight* 350KG
Function Ramp loading, candler, sanitizer sprayer, washing, drying fan, manual collection table, optional accumulator and vacuum egg lifter

Notes
* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Manual loading & candling
  • Vacuum egg lifter & accumulator (optional)
  • Sanitizer sprayer
  • Washing
  • Drying
  • Manual collection
    Manual loading & candling

    Workers place eggs on the loading ramp.
    Eggs will run through LED lights for candling purpose before dropping into the egg washer, where workers can easily pick out any unqualified eggs such as leaking or cracking ones.

    Vacuum egg lifter & accumulator (optional)

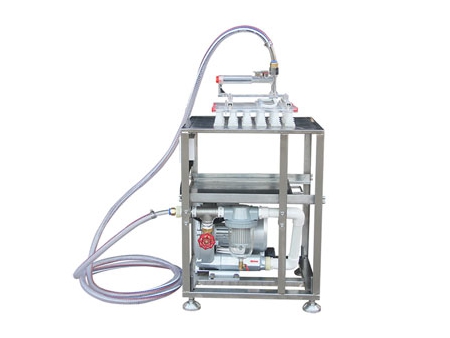

    Eggs are vacuum lifted and loaded onto the accumulator (with the single roller conveyor) using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the feeding unit of 200AS egg washer.

    Sanitizer sprayer

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Before washing
    • After washing

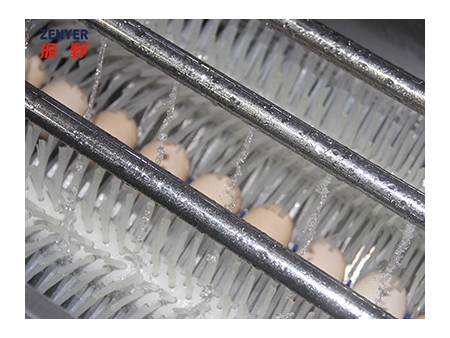

    Eggs are effectively cleaned by brushes with warm water spraying (the machine doesn’t come with a water heater, customer provides it). Brush modules are flexible and adjustments could be made on brush distance, position and speed.

    Drying

    The eggs will be dried by the drying fan system.

    Manual collecting

    Washed eggs will roll onto collection table and can be placed into trays manually.
