201A Egg Washer (5,000 EGGS/HOUR)
The ZENYER 201A egg washer can process 5000 eggs each hour and satisfies egg cleaning requirements for medium-sized cage-free farms. This model is capable of loading, candling, sanitizer spraying, brushing, drying steps and selective printing services upon request.
The 201A egg washer is very simple to use, you can also combine it with the ZENYER or for a higher production efficiency assembly line.
| Product name | Egg cleaning machine |
| Product code | 201A |
| Model | ZYX-JS1-2 |
| Capacity | 5,000 eggs/hour |
| Material | Stainless steel |
| Power* | 7.9KW |
| Voltage* | 220V, 50HZ, single phase 380V, 50HZ, three phase |
| Dimension(L×W×H) | 8.1*1.25*1.55 M |
| Net weight* | 900KG |
| Gross weight* | 750KG |
| Function | Manual loading, sanitizer sprayer, washing, drying, optional accumulator & candling, vacuum egg lifter, egg printer, manual packing lane with UV |
Notes

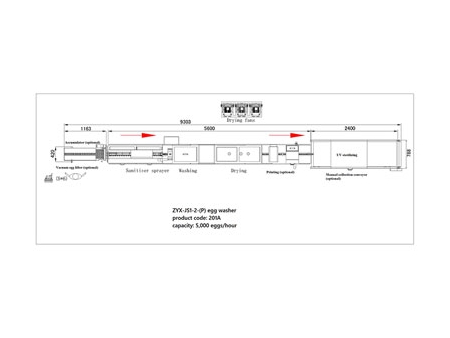

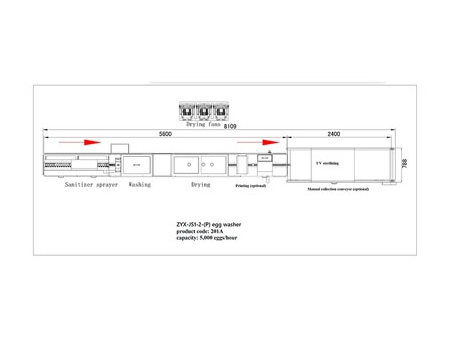

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.
- Manual loading
- Vacuum egg lifter & accumulator (optional)
- Candling (optional)
- Sanitizer sprayer
- Washing
- Drying
- Printing (optional)
- Manual packing lane with UV sterilizing (optional)
Workers place eggs on the single row loading conveyor manually.

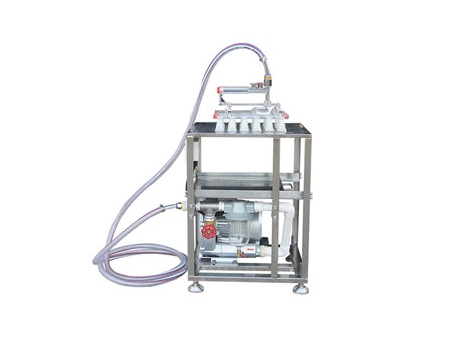

Eggs are vacuum lifted and loaded onto the 604AS accumulator using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the single row conveyor of 201A egg washer.
Eggs will run through LED lights for candling purposes before dropping into the egg washer, meaning workers can easily pick out any unqualified eggs such as leaking or cracked ones.
Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.
- Before washing
- After washing

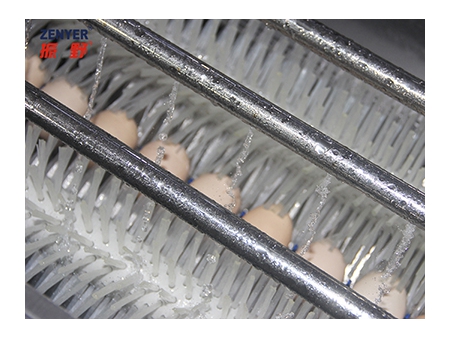

Eggs are well cleaned by brushes with warm water spraying (the machine doesn’t come with a water heater, customer provides it). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.

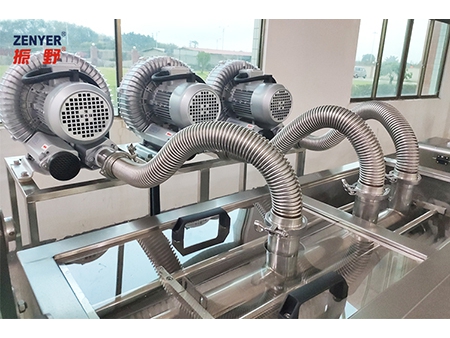

Eggs are perfectly dried by drying brush and strong air generated by drying fans.

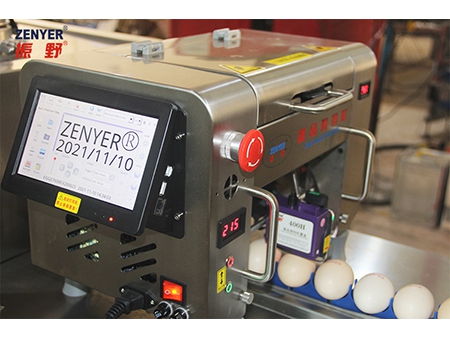

The ZENYER could be attached at the end of egg washer, you can print your farm name, logo, date, best before date, etc. on eggs.
The UV sterilization unit can be installed on the manual collection conveyor. It takes advantage of the UV disinfection system to sanitize egg shells for maximum food security.

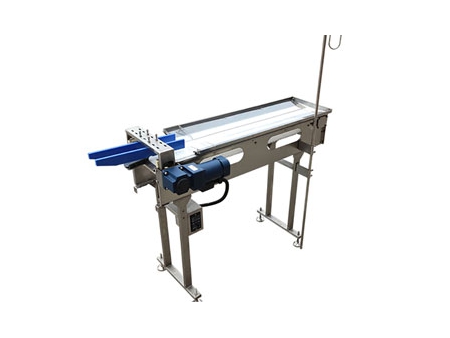

Washed eggs will roll onto the conveyor (motor drive) and will be placed into trays manually.
