Our Offline Low-E Coated Glass (Soft Coated) stands out by featuring multiple layers of metals or other compounds on the glass surface. This advanced coating allows for high visible light transmittance while reflecting far-infrared radiation, making our glass an exceptional choice for application in various climate and/or region conditions. We offer high-performance tempered offline single-silver, double-silver, and triple-silver low-E coated glass products tailored to meet the specific needs of our clients.
- Technological Advantage
We leverage world-leading technology from PPG USA and employ experts from the glass coating industry. Additionally, our strong technical team provides unparalleled support for our customers. - Performance Advantage
We are the first producer of offline tempered triple-silver low-E coated glass in Chia, achieving an LSG of 2.32. Our IGU (Insulating Glass Unit) boasts the highest market visible light transmittance of 82% and the lowest U-value of 1.01 W/m².K, offering superior thermal insulation. - Industry Advantage
Our comprehensive product range, from clear float glass and tinted glass to ultra clear glass, provides complete glass solutions for our clients.

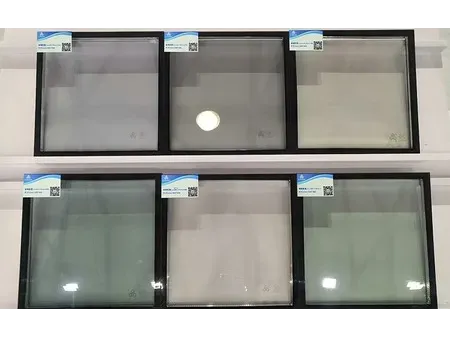

![](public/propic/4241/b_2-1-offline-low-e-coated-glass_05b.webp)
We are among the few manufacturers worldwide that produce both offline and online low-E coated glass.
Utilizing the German Leybold low-E coated glass production line, we achieve an annual production capacity of 10 million square meters, offering high-performance single-, double-, and triple-silver low-E glass and composite glass products.

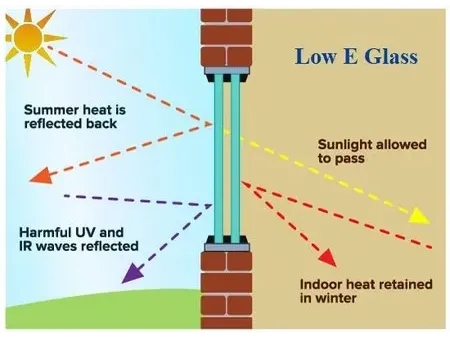

Our low-E glass, with its low-reflectivity coating, effectively reduces heat gain or loss by reflecting far-infrared energy (solar heat). This feature helps reduce U-values and solar heat gain, significantly improving the energy efficiency of buildings. Our superior quality and performance make our glass a top choice, providing exceptional value and popularity in the market.
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_07b.webp)
Visible Light (%) | Solar Energy (%) | NFRC | |||||||
Trans (%) | Reflectance (%) | Trans (%) | Refectance (%) | U-Value (W/m²K) | Sc (%) | SHGC (%) | |||
Out | In | Winter | Summer | ||||||
6mmS1.16 12A 6mmClear | 80 | 13 | 13 | 50 | 24 | 1.72 | 1.65 | 0.65 | 0.57 |
6mmUS1.16 12A 6Ultra-clear | 83 | 14 | 14 | 60 | 30 | 1.73 | 1.70 | 0.71 | 0.61 |
6mmD80 12A 6Clear | 70 | 13 | 13 | 33 | 34 | 1.70 | 1.34 | 0.43 | 0.37 |
6mmUD80 12A 6Ultra-clear | 73 | 13 | 14 | 38 | 41 | 1.66 | 1.60 | 0.45 | 0.39 |
6mmD68 12A 6Clear | 60 | 17 | 20 | 33.5 | 22.0 | 1.71 | 1.67 | 0.46 | 0.40 |
6mmUD68 12A 6Ultra-clear | 63 | 18 | 21 | 39.7 | 27.9 | 1.71 | 1.67 | 0.50 | 0.43 |
6mmD49 12A 6Clear | 46 | 15 | 13 | 21 | 32 | 1.69 | 1.64 | 0.29 | 0.25 |
6mmUD49 12A 6Ultra-clear | 48 | 15 | 13 | 23 | 44 | 1.69 | 1.64 | 0.30 | 0.26 |
6mmSolarban70 12A 6Clear | 64 | 12 | 13 | 24 | 50 | 1.62 | 1.55 | 0.31 | 0.27 |
6mmSolarban72 12A 6Ultra-clear | 71 | 13 | 14 | 28 | 53 | 1.62 | 1.55 | 0.34 | 0.30 |
Notes: 1. Above performance data are calculated according to standards NFRC 2010, EN673 and JPG151. 2. The performance data are only for reference. Jinjing will hold the right of final interpretation. |
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_08b.webp)
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_09b.webp)
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_10b.webp)
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_11b.webp)
- Project Name: The Exchange-106
- Location: Malaysia
- Glass: 8mm UD80 7000m² for podium structure
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_12b.webp)

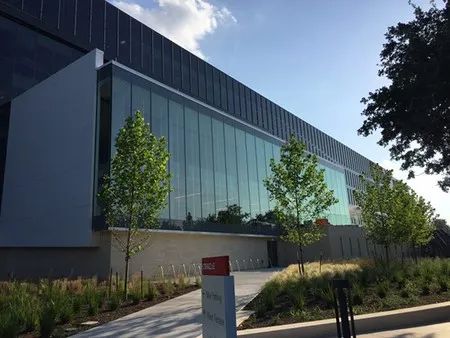

- Project Name: Oracle office Texas
- Location: USA
- Glass: 10mm Solarban 72 jumbo size
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_13b.webp)

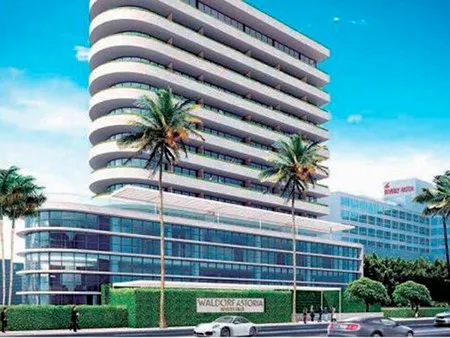

- Project Name: Waldorf Astoria
- Location: USA
- Glass: 6mm, 10mm Solarban 72 2000m² for curtain wall
![](public/propic/4241/b_2-1-offline-low-e-coated-glass_14b.webp)

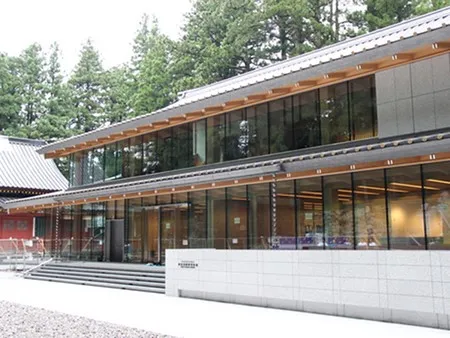

- Project Name: Nikko Toshogu (400 Anniversary Project)
- Location: Japan
- Glass: 10mm US83 1000m² for curtain wall
