Multi-station injection moulding machine for producing rubber tyres and rubber handrails

This injection moulding machine is suitable for processing rubber particles and then produce rubber products like low-speed tyres and rubber handrails.

Specifications
Stations 8
Maximum injection volume g 3500
Screw diameter mm 80
Injection pressure MPa 100
Clamping force Ton 500
Mould space mm 850*850*300
Die opening stroke mm 600
Dimensions mm 13000*6000
Heating power kW 30
Total power kW 75
Total weight Ton 100
Optional
  • Suction machine

  • Energy-saving hydraulic servo control system

System flow chart
Features
  • No need for rubber mixing, direct injection molding of rubber particles;
  • Rubber particles do not age for up to 6 months, and the products made of the rubber particles are wear-resistant and high-elastic;
  • This injection moulding machine features large injection pressure and clamping force, which ensure the product is smooth and free of burrs;
  • Standard industrial human-machine interface (HMI) and PLC control system are installed;
  • This tyre injection moulding machine has a powerful vacuum system to remove the air in the mould cavity;
  • Constant mold temperature control system is configured to ensure precise control of vulcanization speed;
  • This rubber tyre injection moulding machine has a precise displacement control system to improve the working efficiency of the injector;
  • Fully meet the demands of the vulcanization production of rubbers;
Auxiliary Equipment

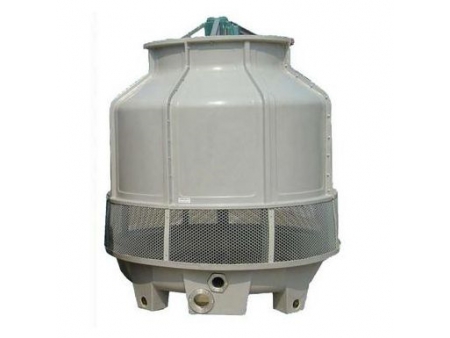

  • Cooling tower cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;

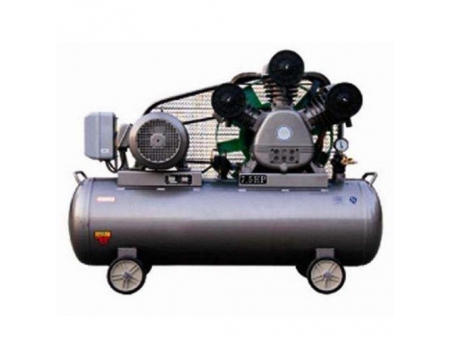

  • Air compressor can be connected to the injection moulding machine to ensure enough air supply;

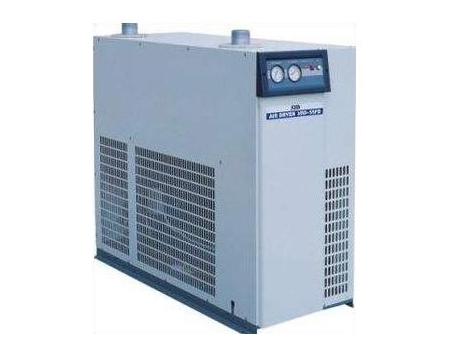

  • Drying system helps avoid bubbles in finished rubber products;
