Request a Quote

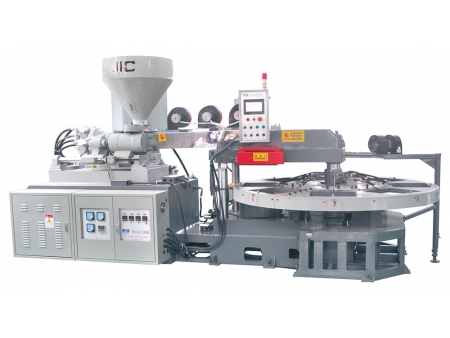

Single colour injection moulding machine for making EVA/FRB rain boots, midsoles, sandals and seat cushions

This EVA injection moulding machine is suitable for the production of single-colour foam products like rain boots, midsoles, slippers, sandals, yoga sticks and cushions. It can handle raw materials of EVA and rubber particles.

Specifications
Item Unit ZF206E ZH208E
Raw materials EVA, Rubber
Stations 6 8
Screw diameter mm 60/65*2
Maximum injection volume CC 980/1150*2
Injection pressure MPa 120
Clamping force Tons 220
Yield Pairs/hour 180-250 200-300
Mould space mm 290*550*2set
Mould opening stroke mm 350
Mould thickness mm 100-330
Injection cylinder diameter/stroke mm ∅250*350
Screw power kW 14
Template heating power kW 12*6 12*8
Servo motor power kW 52
Total power kW 138 162
Dimensions cm 790×470×300 970×470×300
Machine weight Tons 25.6 32.7
Oil consumption L 1200
Optional
  • Energy-saving hydraulic servo control system

  • Suction machine

System flow chart
Features
  • Large template design and superior clamping force;
  • Shuttle table allows for smooth station switching;
  • This linear EVA injection moulding machine has a constant temperature system and a powerful vacuum system;
  • Screw rod is made through special techniques that ensure durable and effective performance;
  • Safety measures involving different machine parts have been taken;
  • Efficient feeding system is configured to save a lot of time;
  • Standard industrial human-machine interface (HMI) and PLC control system are installed;

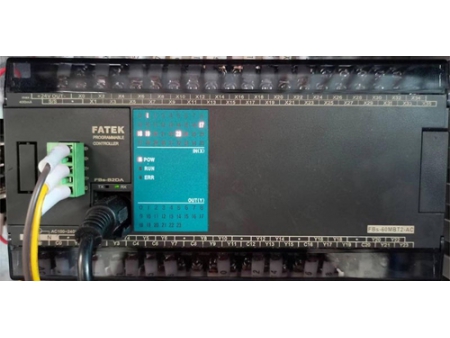

    • PLC control system

    • PLC

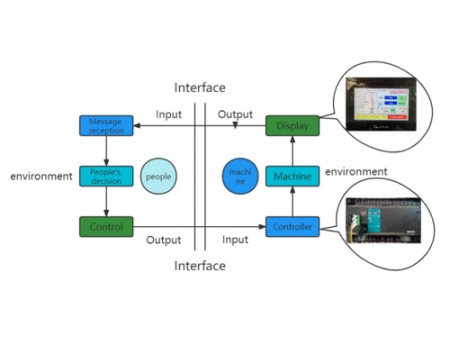

    • HMI interface

  • Servo system is installed to save energy and reduce costs;

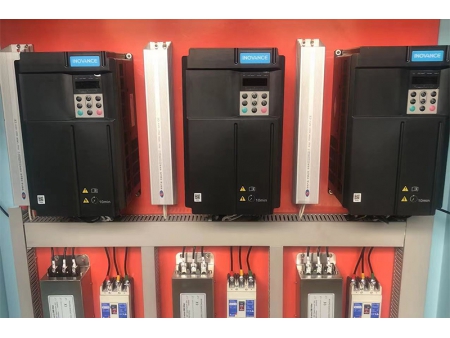

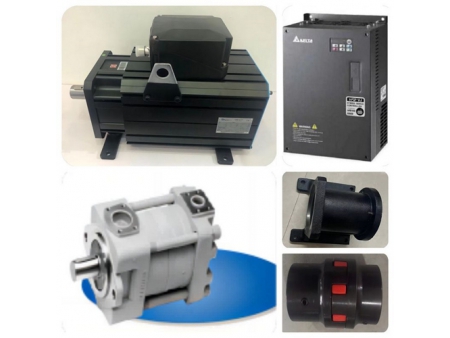

    • Servo system

Auxiliary Equipment
  • Cooling tower cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;

  • Air compressor is connected to the shoe injection moulding machine to ensure enough air supply;

  • Drying system is used to avoid bubbles in finished products and make better foam soles;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Allen key 12 1pc
Allen key 14 1pc
Allen key 17 1pc
Open-end wrench 8-32 6 sets
Open-end wrench 41-46 1pc
Slotted Screwdriver 6# 1pc
Phillips screwdriver 6# 1pc
Adjustable wrench 375-46 mm 1pc
Vacuum pump oil / 1 liter
O-ring 60*3.1 2pcs
O-ring 95*3.1 1pc
O-ring 120*3.53 1pc
O-ring 140*3.1 1pc
O-ring 200*5.7 1pc
O-ring 195*3.1 4pcs
O-ring 160(inner)*3.1 2pcs
O-ring 40*2.65 2pcs
O-ring 20*3.1 1pc
Pressure gauge 400KG 1pc
Vertical pressure gauge 400KG 1pc
Heating rod Φ16*500 4pcs
Solid state relay / 5pcs
Proximity switch Q18-05NK 5pcs
Heating ring φ118*50 1pc
Heating plate 250*65 1pc
Thermal resistance / 5pcs
User manual / 1
Ground anchor plate CB001 40pcs
Pneumatic spray gun / 4pcs
Upper mould locking bolt CB002 30pcs
Mould locking bolt gasket CB003 30pcs
Lower mould locking bolt M12X65 48pcs
Spray gun / 4pcs
Mould coupling CB004 16pcs
Thermocouple / 4pcs
Gas pipe φ8 30meters
Gas pipe fittings φ8 Tee 10pcs
Gas pipe fittings φ8 Coupling 10pcs
Gas pipe fittings Z1/4-8 Coupling 10pcs
Gas pipe fittings Z1/4 Quick connect coupler 10pcs
Wire rope / 8meters
Rope tensioner / 4pcs
Wire buckle / 4pcs
Pulley / 4pcs
Cable tie 10*500 1pack
Cable tie 5*250 1pack
Nut M27 36pcs
Magnetic switch 3pcs
Temperature controller H-D48 3pcs
Current meter 85L17-300/5 1pc
Current meter 85L17-1A 1pc
Blower 120*120-220V 1pc
Double proportional valve amplifier board / 1pc
Drive board 127 2pcs
Alarm lamp 24V yellow 1pc
Warning buzzer / 1pc
5-way 2-position pneumatic valve 24V 2pcs
High temperature valve 24V-3/8 2pcs
Sliding block 35 1pc
Non-return valve 55 1pc
Bushing φ45*φ55 5pcs
Torpedo nozzle / 1pc
Check ring / 1pc
Transition ring / 1pc
Pneumatic combination unit / 1pc
Vacuum gauge / 2pcs
