Spacer Fabric Weaving Machine
Request a Quote

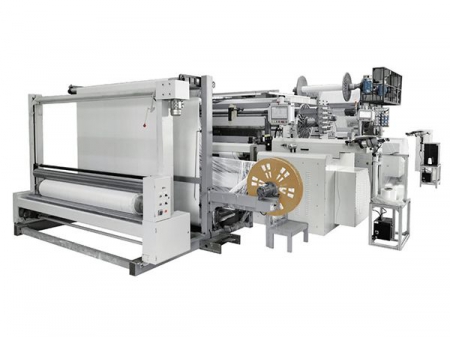

GE721 Double Rapier Machine
Double rapier weaving machine for producing ultra-thick spacer fabrics
Applications

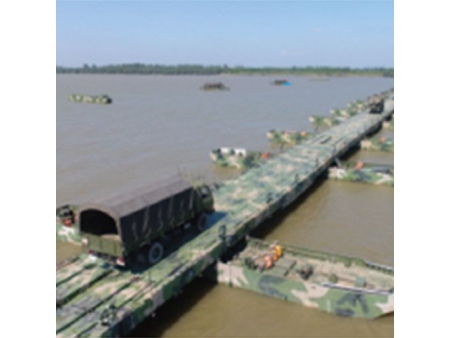

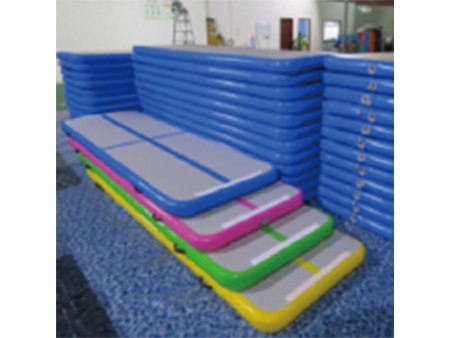

Ultra-thick spacer fabrics used in airport runways, air mattresses, floating bridges, construction, and military applications.
Features
- The fabric features adjustable height, ranging from 50, 150, 250, 350, 450, 550, 650, 750, 850, 950, 1050.
- Weft insertion system, weft beat-up and pile cutting device adopt conjugate cam-linkage mechanism.
Specifications
- Working width 1800~2300mm
- Pattern Electronic dobby
- Beat-up Separated sley, CAM beat-up
- Weaving speed 110-150 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE721-2300mm | 4500×4000×2500 | 18 | 8000 | 20.35 |
