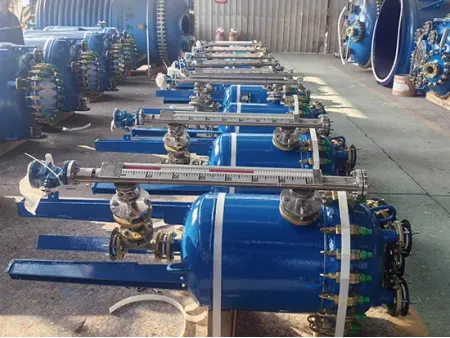

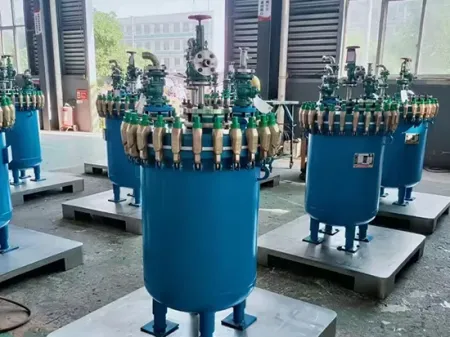

Vertical Glass Lined Storage Tank, Open Type

Request a Quote

Website: http://glasslining-en.com/2-1-vertical-glass-lined-storage-tank-open-type.html

Corrosion-resistant storage vessels with removable top cover

Open-type vertical glass lined storage tanks are equipped with welding neck flanges that match the tank diameter. They are designed for nominal pressures of up to 0.6 MPa, with capacities ranging from 50L to 200,000L, and can operate within a medium temperature range of 0 to 150 °C.

These corrosion-resistant storage vessels combine the strength of steel with the protection of a glass lining. The smooth interior surface preserves the quality of stored materials, prevents contamination from metal ions, and ensures chemical and thermal stability. In addition, the tanks are easy to clean and maintain.

Commonly used in petroleum, chemical, pesticide, plastics, food, dye, synthetic fiber, and synthetic rubber industries, they provide reliable performance and long service life for a wide range of applications.

Dimensional Drawing

Dimensions of Open Type Glass Lined Storage Tanks

Nominal Volume L	DN	D1	D2	D3	H	H1	H2	H3	H4	S	H5	H6
50	500	350	20	370	835	270	465	/	160	8	/	/
100	500	350	20	370	1020	265	655	/	160	8	/	/
200	600	360	20	420	1615	300	965	450	150	8	/	/
300	700	420	25	490	1567	345	1070	500	205	10	/	/
500	800	480	25	560	1950	385	1370	800	160	10	/	/
1000	1000	600	25	700	2450	430	1770	1000	200	12	/	/
1500	1300	780	30	950	2410	505	1625	800	170	14	/	/
2000	1300	780	25	950	2654	505	1970	1200	200	14	/	/
3000	1600	960	30	1200	2565	585	1815	1000	190	16	/	/
4000	1600	960	30	1200	3065	585	2315	1500	190	16	/	/
5000	1600	960	30	1200	3756	585	2784	1200	189	16	450	120
6300	1750	1200	30	1250	3625	625	2800	1200	190	18	450	120
8000	2000	1400	36	1500	3935	700	3020	1200	200	20	450	120

Nozzle Specifications (mm)

Nominal Volume L	S	S1	S2	a	b	c	d	e1.2	f1.2	g	h
50	8	8	10	80	65	65	65	/	/	65	/
100	8	8	10	80	65	65	65	65	/	65	/
200	8	8	10	125	65	65	65	65	/	65	/
300	10	10	10	125	80	65	65	65	/	80	/
500	10	10	10	150	80	80	65	65	/	80	/
1000	12	12	12	150	80	80	80	65	/	80	/
1500	14	14	12	200	100	80	80	65	/	100	80
2000	14	14	12	300×400	100	80	80	65	/	100	80
3000	16	16	12	300×400	100	80	80	65	/	100	80
4000	16	16	12	300×400	100	80	80	65	/	100	80
5000	16	16	12	300×400	125	100	100	65	65	125	100
6300	18	18	20	300×400	125	100	100	65	65	125	100
8000	20	20	20	300×400	125	100	100	65	65	125	125
