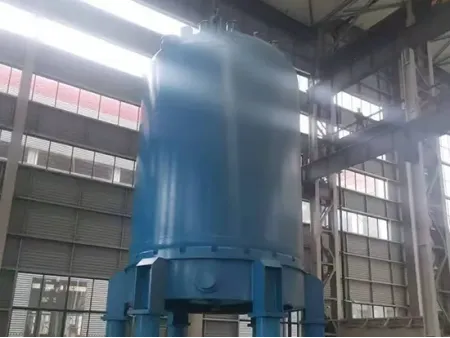

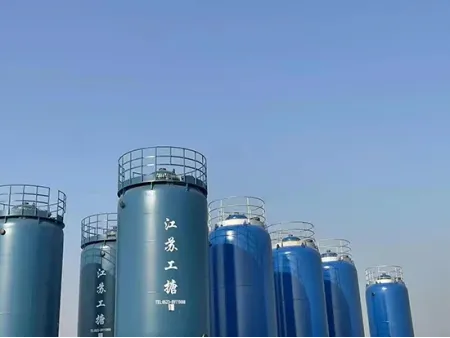

Vertical Glass Lined Storage Tank, Close Type

Request a Quote

Website: http://glasslining-en.com/2-2-vertical-glass-lined-storage-tank-close-type.html

Corrosion-resistant storage vessels with the cover permanently welded to the vessel body

Close-type vertical glass lined storage tanks are available in nominal volumes from 50L to 200,000L. Non-standard designs can also be produced to meet specific project requirements.

The overall performance of these storage vessels depends on both external and internal quality. External quality can be evaluated through visual inspection and instrument testing, while internal quality is determined by the accuracy of forming, welding, and surface treatment, as well as by how strictly each production stage is controlled.

Any defects, whether visible or microscopic, can appear during transportation, storage, or operation, which may lead to equipment failure. The reliability of the tank depends on keeping every step of production under control, whether it’s forming, welding, or surface treatment.

These tanks use high-quality enamel coatings that make them durable, bringing together the strength of steel and the protective qualities of glass. Careful control at every stage of production helps keep the quality consistent and extends their service life.

Dimensional Drawing

Dimensions of Close Type Glass Lined Storage Tanks

Nominal volume VN/L	DN	D1	D2	D3	D4	H	H1	H2	H3	H4	H5	H6	H7	H8	S
3000	1600	600	420	30	1200	2740	300	2422	550	115	1000	/	/	2220	16
5000	1600	600	420	30	1200	3720	305	3400	520	130	1200	460	1200	3160	16
6300	1750	600	420	30	1225	3924	310	3604	580	130	1200	424	1200	3304	18
8000	2000	700	490	36	1500	3880	340	3520	630	150	1100	500	1100	3280	20
10000	2200	700	490	36	1520	4053	340	3703	692	150	1200	600	1200	3392	20
20000	2600	700	490	36	1820	5540	340	5200	665	150	1800	600	1800	4605	24
30000	2800	700	490	36	1960	6090	340	5750	710	150	1800	600	1800	5510	26
40000	3200	800	480	36	2400	6870	386	6474	965	150	2200	500	2200	6125	28
50000	3400	800	480	36	2720	7500	386	7124	975	150	2600	570	2600	6630	32

Nozzle Specifications (mm)

Nominal volume VN/L	a	b	c	d	e1-2	h1-2	g
3000	125	65	65	65	65	65	125
5000	125	65	65	65	65	65	125
6300	125	65	65	65	65	65	125
8000	125	80	65	65	80	80	125
10000	125	80	65	65	80	80	125
20000	300×400	100	100	125	100	100	125
30000	300×400	100	100	125	125	125	125
40000	125	150	100	100	125	125	200
50000	125	150	100	100	125	125	200
