Horizontal Glass Lined Storage Tank

Request a Quote

Website: http://glasslining-en.com/2-3-horizontal-glass-lined-storage-tank.html

Corrosion-resistant storage vessels for storing corrosive or sensitive materials

Chemical, pharmaceutical, and petrochemical industries often deal with aggressive media that can wear down equipment over time, making corrosion resistance a critical factor in vessel design and material selection. For this reason, corrosion resistance is one of the first factors engineers consider when selecting storage or reaction vessels. Choosing the right material not only determines how long the storage vessel will last, but also affects product quality and, in some cases, the outcome of the chemical reaction itself.

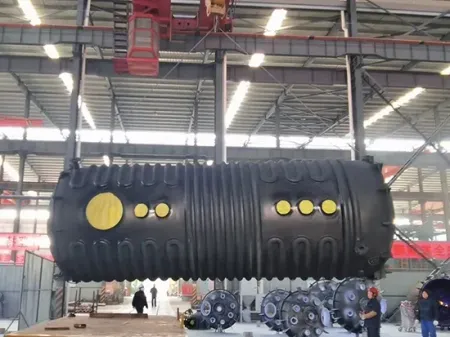

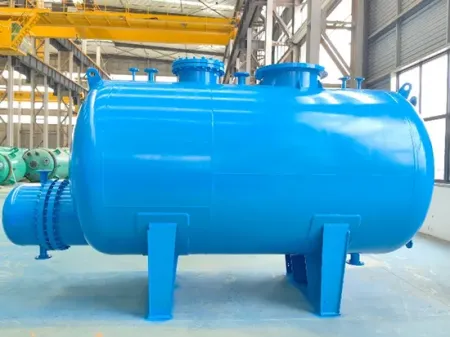

Horizontal glass lined storage tanks are designed to handle the demanding conditions of industries where corrosive materials are stored. The shell is built from carbon steel, providing the structural strength needed for industrial use. Inside, a layer of enamel is fused to the steel at high temperatures, forming a smooth and chemically stable surface. This enamel lining prevents direct contact between the stored medium and the metal, reducing the risk of contamination and extending the service life of the tank. By combining strength and corrosion resistance, these storage tanks can safely store a wide range of aggressive chemicals while maintaining reliable performance.

These tanks are produced in capacities from 50L to 200,000L, with a maximum design pressure of 0.6 MPa. They can safely store media within a temperature range of 0 °C to 150 °C, covering the needs of many chemical processes. By combining strength, resistance, and adaptability, horizontal glass lined storage tanks have become a dependable choice for long-term industrial use.

Dimensional Drawing

Note:

1. Tank body
2. Glass-lined manhole
3. Elliptical head
4. Type A glass-lined nozzle
5. Lap joint flange
6. Saddle support

Dimensions of Horizontal Glass Lined Storage Tanks, 3000L-12500L (mm)

Nominal volume VN/L	L0	L1	L2	L3	L4	H1	H	A1	K1	A2	B	E	F	A3
3000	2710	900	310	403	250	1760	1000	1350	1120	200	100	490	100	570
4000	3310	1500	310	403	250	1760	1000	1350	1120	200	100	490	120	550
5000	3265	1240	480	440	250	2080	1200	1430	1180	350	150	300	150	300
6300	4060	1740	580	440	250	1980	1200	1430	1180	350	150	600	150	600
10000	4080	1820	415	550	160	2340	1300	1780	1490	250	150	950	150	950
12500	4800	2740	470	649	260	2340	1300	1780	1490	250	150	950	150	950

Nozzle Specifications (mm)

Nominal volume L	Actual volume L	Diameter	Tank		Head thickness S1	Nominal diameter of nozzles (DN)								Liquid level gauge length ×quantity
Nominal volume L	Actual volume L	Diameter	Tank wall thickness s	Length L	Head thickness S1	Spare nozzle a	Spare nozzle b	Spare nozzle c	Outlet nozzle d	Liquid level gauge e1, e2	Inlet nozzle f	Outlet nozzle h	Process nozzle g	Liquid level gauge length ×quantity
3000	3490	1450	14	1550	14	65	125	65	65	65	65	65	600	1000×1
4000	4500	1450	14	2150	14	65	125	65	65	65	65	65	600	1000×1
5000	5680	1600	16	2200	16	100	80	80	65	65	80	80	600	1200×1
6300	7100	1600	16	2900	16	100	65	65	65	65	80	80	600	1200×1
10000	10860	2000	20	2700	20	100	100	150	100	65	100	100	800	1300×1
12500	13921	2000	20	3680	20	100	100	150	100	65	100	100	800	1300×1

Dimensions of Horizontal Glass Lined Storage Tank, 16000L-80000L

Nominal volume VN/L	Actual volume V/L	Diameter D	Tank		Head thickness S1	Nominal diameter of nozzles DN		L0	L	L1	L2	H0	H1
Nominal volume VN/L	Actual volume V/L	Diameter D	Wall thickness S	Length L	Head thickness S1	Inlet b	Spare nozzle d	L0	L	L1	L2	H0	H1
16000	17756	2200	20	3840	20	150	150	5080	2840	450	142	2900	1470
20000	22330	2400	22	4030	22	150	150	5374	2930	500	140	3110	1572
25000	27790	2800	24	3480	24	150	150	5028	2280	600	238	3510	1774
30000	33300	3000	26	3630	26	150	150	5282	2370	630	236	3720	1876
40000	44000	3200	28	4300	28	200	200	6060	2800	650	234	3900	1978
50000	55000	3400	30	4830	30	200	200	6690	3230	700	232	4100	2080
63000	69000	3600	32	5480	32	200	200	7440	3780	750	230	4300	2182
80000	88000	3800	34	6390	34	200	200	8460	4590	800	228	4500	2284
