Glass Lined Reactors, Close Type

Request a Quote

Website: http://glasslining-en.com/1-2-glass-lined-reactors-close-type.html

Glass lined reactor with four-column rack

Corrosion-resistant reaction vessels with the cover permanently welded to the vessel body

Close-type glass lined reactors are commonly used in the chemical, petrochemical, pharmaceutical, dye, food, and pesticide industries, as these sectors require reliable corrosion resistance and durability. These reactors can withstand demanding processes by providing high corrosion resistance, consistent stability, and reliable operation.

Capacity range: 50 – 80,000 L
Maximum pressure: up to 16 bar (atmospheric to high pressure)
Operating temperature range: –19 °C to 200 °C
Standards: CE/JIS/ASME/GB

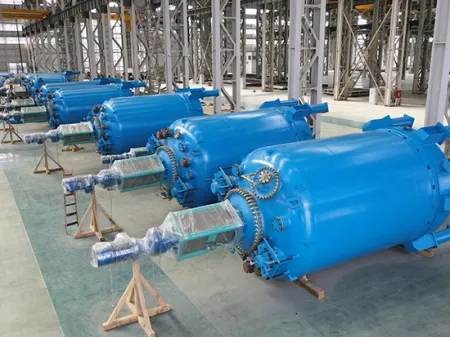

Large 30000L glass lined closed reactor with four-column rack and quick-opening manhole

3000L glass lined closed reactor with quick-opening cover

20000L glass lined reactor for export to thailand

Non-standard glass lined reactor with dual manholes

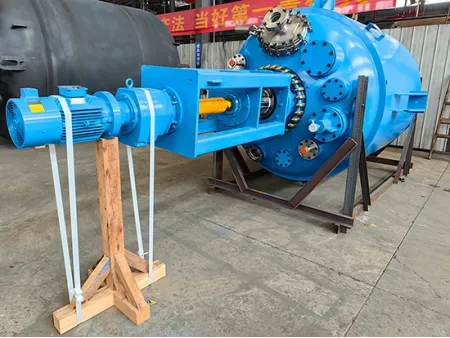

Glass lined reactor with four-column rack and horizontal gear motor

Glass lined reactor with four-column rack, quick-opening manhole, and reinforced flanges

12500L glass lined reactor with horizontal speed reducer and four-column rack

10000L glass lined reactor with vertical speed reducer

This type of glass lined reactors come with a jacket for heating or cooling and is fitted with an agitator, allowing efficient mixing and stable control of different processes. A welding neck flange is set on the head to provide a secure connection, while high-quality imported enamel ensures durability and long service life.

The internal design pressure can reach up to 1.0 MPa, with capacity options ranging from 3000 L to 50000 L. The jacket is designed for a maximum pressure of 0.6 MPa, and both the tank and jacket can safely operate within a temperature range of –20 °C to 200 °C.

Technical Parameters

Design pressure	Internal vessel	Packing seal	0.2MPa
		Mechanical seal	0.4MPa/1.0MPa
	Jacket	0.6MPa
Design temperature	Internal vessel	-20℃~ 200℃
	Jacket	-20℃~ 200℃
Agitator speed	Anchor type/frame type	63r/min
	Paddle type	110r/min~130r/min
	Impeller type	110r/min~130r/min

Dimensional Drawing

Dimensions of Close-type Glass Lined Reactors (mm)

Volume (L)	3000	5000		6300	8000	10000		12500	16000	20000	25000	30000	50000
Item	3000	5000		6300	8000	10000		12500	16000	20000	25000	30000	50000
DN	1600	1600	1750	1750	2000	2200	2400	2400	2400	2600	2800	3200	3400
D0	1120	1220	1220	1220	1400	1540	1680	900	900	975	1050	1200	1500
D1	1750	1750	1900	1900	2200	2400	2600	2550	2550	2750	2950	3350	3600
D2	2029	2029	2200	2200	2502	3744	2940	2812	2812	3060	3335	3866	4378
D3	30	30	30	30	36	36	36	36	36	36	36	36	36
D4	φ95	φ95	φ95	φ95	φ110	φ110	φ110	φ110	φ125	φ140	φ160	φ160	φ180
D5	65×6	65×6	80×6	80×6	95×8	95×8	95×8	95×8	98×8	95×8	110×l2	110×12	125×12
D6	600	600	600	600	800	800	800	800	800	900	1100	1300	2000
D7	450	450	450	450	510	510	510	560	560	650	650	810	940
D8	1300	1300	1400	1400	1505	1645	1785	1785	1785	1925	2065	2345	\|
H	2250	3275	2888	3244	3310	3513	3160	3495	3830	4640	5060	4900	6765
H1	1060	1160	1200	1200	1200	1300	1500	1300	1300	1400	1500	1750	2200
H2	/	/	800	900	900	950	640	375	600	650	750	600	1700
H3	700	780	750	750	800	1300	1010	900	900	1000	1050	1150	1250
H4	1550	1710	1500	1700	1700	1850	1610	2000	2350	2500	2650	2650	2950
H5	200	200	200	200	355	340	315	315	315	330	250	240	/
H6	1454	1535	1535	1682	1702	1822	1822	1822	1822	2594	2594	2734	3260
B1	540	540	540	540	540	540	540	550	550	550	550	550	550
B2	370	370	370	370	370	370	370	470	470	470	470	470	470
Power (kW)	5.5	7.5	7.5	11	11	18.5	18.5	18.5	22	22	22	30	45

Nozzle Specifications (mm)

Volume (L)	3000	5000		6300	8000	10000		12500	16000	20000	25000	30000	50000
Item	3000	5000		6300	8000	10000		12500	16000	20000	25000	30000	50000
DN	1600	1600	1750	1750	2000	2200	2400	2400	2400	2600	2800	3200	3400
a	150	150	150	150	200	200	200	200	200	250	250	250	250
b	100	100	125	125	150	150	150	150	150	200	200	/	/
c	125	125	150	150	150	150	150	150	150	150	150	150	150
d	100	100	125	125	150	150	125	250	250	250	250	250	250
e	125	125	150	150	150	125	125	150	150	150	150	150	150
f	125	125	125	125	125	150	150	150	150	150	150	150	200
h	/	/	/	/	/	150	150	150	150	200	200	200	/
M	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400	300× 400
S	125	125	125	125	125	125	125	150	150	150	150	150	150
T1	100	100	125	125	200	200	200	200	200	200	200	200	250
T2	/	/	/	/	150	150	150	150	150	200	200	200	200
N1-3	65	65	65	65	65	65	65	80	100	100	100	100	100
K1-3	65	65	65	65	65	65	65	65	65	65	65	80	80
