Glass lined reactor with balance tank and quick-release rod design

Corrosion-resistant reaction vessels with removable top cover

A glass lined reactor is manufactured by spraying a silica-rich glass powder onto the inner surface of a steel vessel. The vessel is then fired at high temperatures, causing the glass to bond firmly to the steel and form a durable composite.

Capacity range: 50 – 80,000 L
Maximum pressure: up to 16 bar (atmospheric to high pressure)
Operating temperature range: –19 °C to 200 °C
Standards: CE/JIS/ASME/GB

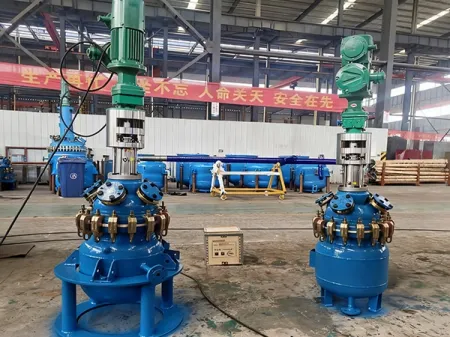

6300L open type glass lined reactor with quick-opening manhole cover

Integrated frame glass lined reactor

Glass lined reactor with customized water connection system

Special structure glass-lined reactor with balance tank

Glass-lined reactor with fixed baffle

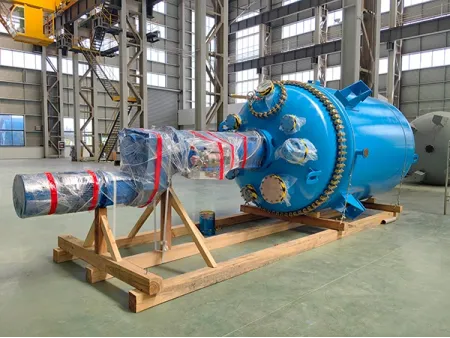

10000L open type glass lined reactor

In the open-type design, the lid and vessel body are separate parts. The connection between the lid and the vessel is sealed with a gasket and tightened with clamps, maintaining proper sealing throughout operation.

This type of reactor combines the stability and corrosion resistance of glass with the strength of steel. The interior surface is smooth, easy to clean, and resistant to impact, heat, abrasion, and chemical corrosion. Thanks to these properties, the open type glass lined reactor is suitable for operations such as hydrolysis, neutralization, crystallization, mixing, and emulsification.

Open-type glass lined reactors are widely used in industries including chemicals, petroleum, pharmaceuticals, pesticides, food, and dyes. They are available in a full range of specifications, and non-standard designs can also be produced according to customer requirements.

Technical Parameters

Design pressure	Internal	Packing seal	0.2MPa
		Mechanical seal	0.4MPa/1.0MPa
	Jacket	0.6MPa/0.8Mpa/1.0MPa
Design temperature	Internal	-19℃~ 200℃
	Jacket	-19℃~ 200℃
Agitator speed	Anchor type, frame type	63r/min
	Oar type	110r/min~130r/min
	Impeller type	110r/min~130r/min

Dimensional Drawing

Dimensions of Open Type Glass Lined Reactors (mm)

Volume (L)	300	500	1000	1500	2000	3000	5000		6300	8000	10000
Item	300	500	1000	1500	2000	3000	5000		6300	8000	10000
D	800	900	1200	1300	1300	1600	1600	1750	1750	2000	2000
D1	900	1000	1300	1450	1450	1750	1750	1900	1900	2200	2200
D2	1032	1148	1488	1639	1675	2044	2044	2218	2218	2500	2533
D3	560	630	840	910	910	1120	1120	1225	1225	1400	1400
D4	720	810	1080	1180	1180	1440	1440	1580	1580	1800	1800
D5	350	350	400	400	400	450	450	450	450	510	510
D6	65	65	80	80	80	95	95	95	95	110	110
D7	23	23	30	30	30	30	30	30	30	36	36
H	800	1000	1200	1400	1745	1739	2700	2317	3025	3120	3460
H0	2530	2759	3222	3440	3785	4073	5115	4792	5850	5450	6270
H1	1050	1050	1240	1240	1240	1454	1535	1535	1535	1650	1700
H2	380	409	482	500	500	580	580	640	640	720	710
H3	260	270	300	330	330	330	330	330	330	420	355
H4	/	/	/	960	1335	1242	2000	1490	1700	2000	2650
H5	/	/	/	/	/	/	700	420	700	900	880
H6	390	420	500	600	600	700	700	700	815	850	850
B1	/	/	/	507	507	614	614	550	550	550	540
B2	250	270	350	350	370	370	370	370	370	400	450
Power (kW)	1.5	3	4	4	4	5.5	7.5	7.5	11	11	11

Nozzle Specifications (mm)

Volume (L)	300	500	1000	1500	2000	3000	5000		6300	8000	10000
Item	300	500	1000	1500	2000	3000	5000		6300	8000	10000
a	125	150	300×400	300×400	300×400	300×400	300×400	300×400	300×400	300×400	300×400
b	100	100	125	125	125	150	150	150	150	200	200
c	65	65	100	100	100	100	100	125	125	200	200
d	80	80	100	100	100	100	100	125	125	150	150
e	65	100	100	125	125	125	125	125	125	125	125
f	65	125	125	125	125	125	125	150	150	125	125
g	65	100	100	100	100	100	100	125	125	150	150
h	/	/	100	200	125	125	125	150	150	125	125
K	/	/	/	/	/	/	/	/	/	150	150
i	80	80	100	100	100	125	125	125	125	125	150
L1-L3	25	32	32	40	40	50	50	65	65	65	65
N1, N2	/	/	/	50	50	50	65	65	65	65	65
N3	/	/	/	/	/	/	65	65	65	65	65
