Heat Seal Shrink Wrapping Machine Manufacturer

Heat Seal Shrink Wrapping Machine

Request a Quote

View All: http://medical-machinery.com/2-11-heat-seal-shrink-wrapping-machine.html

Automatic shrink packaging system with hot knife sealer & shrink tunnel for packaging test tubes in tray

HS-A Automatic Shrink Wrapping Machine for Blood Collection Tubes

This automatic shrink-wrapping machine is designed for use in blood collection tube production lines, enabling the automation of the heat shrink film sealing and cutting process. It efficiently handles the wrapping and sealing of blood collection tubes, streamlining the packaging process and enhancing overall production efficiency.

Technical Specifications

Production capacity: 10 bags/min (depending on product size)
Max. sealing size: L 550mm, W 450mm
Max. package size: L H≤500mm; W H≤430mm
Max. height: 100mm
Power: 3kW/AC380V
Air consumption: 0.2m³/min
Overall dimensions (L×W×H): 2000×900×1600mm

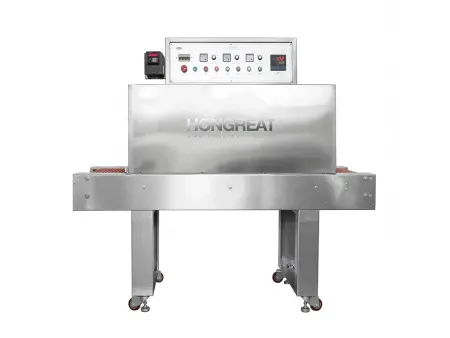

HS-B Stainless Steel Shrink Wrapping Machine for Blood Collection Tubes

This shrink-wrapping machine is designed for use in blood collection tube production lines, providing efficient heat shrink film wrapping. Constructed from durable stainless steel, the shrink wrapper ensures reliable and consistent shrink wrapping performance, contributing to the automation and streamlining of the packaging process.

Technical Specifications

Production capacity: 10 bags/min (depending on product size)
Max. package size: L 300mm, W 300mm, H 150mm
Temperature control: SCR stepless temperature control
Speed control: frequency conversion
Temperature range: room temperature ~ 150℃
Power: 12kW/AC380V
Overall dimensions (L×W×H): 2000×850×1650mm
