Request a Quote
View All: http://packaging-strapping.com/2-3-4-shrink-wrapping-machines.html

Heat Shrink Tunnel, YS-FT-4525

  • Power 3P AC380V 50Hz 24.0kW
    Table height (mm) 850
    Machine dimension (mm) 1800x980x1320
    Chamber entrance size (mm) 600x400
    Chamber length (mm) 1500
    Speed (m/min) 0-18
    Film material POF, PVC, PE
    Notes Shrink wrapping machines that match: YS-ZB-5B, YS-ZB-5C, YS-ZB-5D, YS-ZB-5E

Automatic Shrink Wrapping Machine, YS-ZB-5AB

  • Power supply 1P AC220V 50Hz 3.0kW
    Compressed air pressure (MPa) 0.6-0.8
    Table height (mm) 780
    Wrapping speed (pcs/min) 10-35
    Max sealing dimensions (mm) ∞x450
    Max product dimension (mm) W H＜400, 且H＜150
    Film dimension (mm) Ø280xW550
    Machine dimension 1670x780x1520
    Option Conveyor belt

Automatic Shrink Wrapping Machine, YS-ZB-5AX

  • Power supply 1P AC220V 50Hz 3.0kW
    Compressed air pressure (Mpa) 0.6-0.8
    Table height (mm) 780
    Wrapping speed (pcs/min) 10-35
    Max sealing dimensions (mm) 550x450
    Max product dimension (mm) L H＜500, W H＜400, H＜120
    Film dimension (mm) Ø280xW550
    Machine dimension (mm) 1670x780x1520
    Option Conveyor belt

Automatic Shrink Wrapping Machine, YS-ZB-5B

  • Power supply 3P AC380V 50Hz 3.7kW
    Compressed air pressure (MPa) 0.6-0.8
    Table height (mm) 850
    Wrapping speed (pcs/min) 1-55
    Max sealing dimensions (mm) W＜380 (customizable), L(∞)
    Max product dimension (mm) W H＜420, H＜150
    Film dimension (mm) Ø280xW550
    Machine dimension (mm) 2080x1500x1300

Automatic Shrink Wrapping Machine, YS-ZB-5C

  • Power supply 3P AC380V 50Hz 4.0kW
    Compressed air pressure (MPa) 0.6-0.8
    Table height (mm) 850
    Wrapping speed (pcs/min) 1-25
    Max sealing dimensions (mm) W＜390 (customizable), L (∞)
    Max product dimension (mm) W H＜450, H＜350
    Film dimension (mm) Ø280xW550
    Machine dimension (mm) 2780x1500x1300

Automatic Shrink Wrapping Machine, YS-ZB-5D

  • Power supply 3P AC380V 50Hz 3.0kW
    Compressed air pressure (MPa) 0.6-0.8
    Table height (mm) 850
    Wrapping speed (pcs/min) 1-35
    Max sealing dimensions (mm) 500x600
    Max product dimension (mm) W< 400, L< 500, H< 200, W H< 500
    Film dimension (mm) Ø280xW600
    Machine dimension (mm) 2150x1500x1400

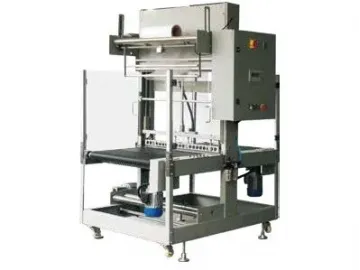

Shrink Wrapping Machine, YS-ZB-2

  • Power supply 3P AC380V 50Hz 2.5kW
    Compressed air pressure (MPa) 0.5-0.8MPa
    Type of wrapping Sleeve wrapping
    Wrapping speed (pcs/min) 1-20
    Table height (mm) 750 (customizable)
    Film dimension (mm) PE stretch film, etc., thickness: 0.04-0.10
    Machine dimension (mm) 1500x920x2000

Speak To Our Specialists

Our team of experienced specialists provides strapping and packaging solutions based on their in-depth knowledge and expertise for your applications.
