(no need for centrifuge)

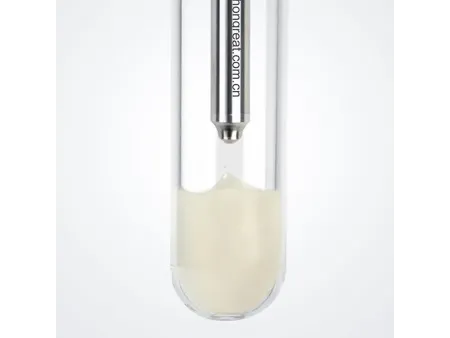

Designed with an automatic gel loading system, integrated separation gel heating functionality, and a vacuum mixing and degassing system, this gel filling machine ensures the removal of air bubbles from the gel, eliminating the need for subsequent centrifugation. It is engineered for filling separation gel into blood collection tubes, without the need for centrifuge, streamlining the process while maintaining high precision and efficiency.

• Production capacity: 8,000-10,000 pcs/h (depending on manual operation speed and gel viscosity)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 0.8-2g/pc
• Dosage accuracy: ±10%
• Power: 8kW/AC380V
• Overall dimensions (L×W×H): 3250×1750×1650mm

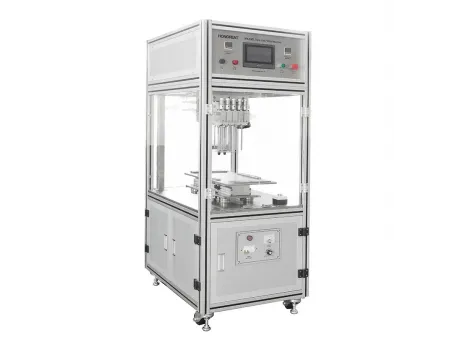

Our precision gel filling machine is equipped with an automatic gel loading system, capable of adding separation gel to 10 tubes in a single operation. Integrated into blood collection tube assembly lines, the filling machine precisely fills the tubes with separation gel, ensuring consistent and accurate application in each tube.

• Production capacity: 2,000 pcs/h (depending on manual operation speed and gel viscosity)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 0.8-2g/pc
• Dosage accuracy: ±10%
• Power: 5kW/AC380V
• Overall dimensions (L×W×H): 1250×1250×1800mm

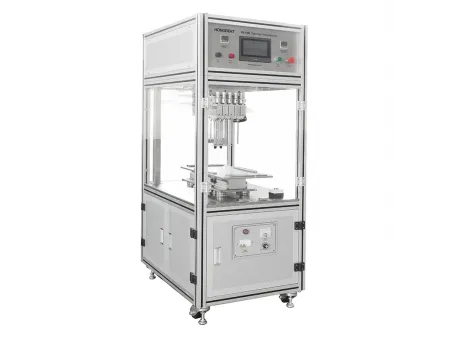

This precision gel filling machine is equipped with an automatic gel loading system and a separation gel heating module. It can efficiently fill 20 blood collection tubes with separation gel in a single operation, ensuring precise and consistent application.

• Production capacity: 4,000 pcs/h (depending on manual operation speed and gel viscosity)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 0.8-2g/pc
• Dosage accuracy: ±10%
• Power: 5kW/AC380V
• Overall dimensions (L×W×H): 1250×1250×1800mm

(Automatic Gel Loading)

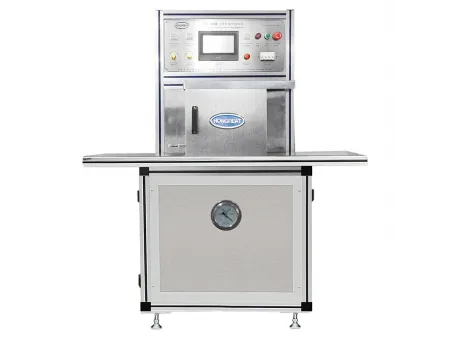

In blood collection tube assembly lines, this separation gel filling machine employs a vacuum negative pressure suction combined with a pneumatic loading system to inject separation gel into the tubes under vacuum conditions.

• Production capacity: 5,000 pcs/h (depending on gel viscosity and room temperature)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 0.8-5g/pc
• Dosage accuracy: ±15%
• Power: 2kW/AC380V
• Air consumption: 0.3m³/min
• Overall dimensions (L×W×H): 1200×1250×1500mm

(for PRP tube)

This gel filling machine is designed for the manufacturing of PRP blood collection tubes, facilitating the precise filling of PRP separation gel. It can handle the filling of 10 tubes per cycle and is equipped with a newly developed automatic gel loading system, ensuring highly accurate and reliable gel dosing.

• Production capacity: 2,000 pcs/h (depending on manual operation speed and gel viscosity)
• Tube size: Ø16×100mm, Ø16×125mm
• Dosage volume: 0.8-5g/pc
• Dosage accuracy: ±10%
• Power: 5kW/AC380V
• Overall dimensions (L×W×H): 1250×1250×1800mm
