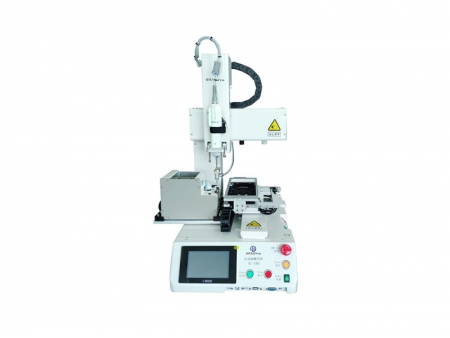

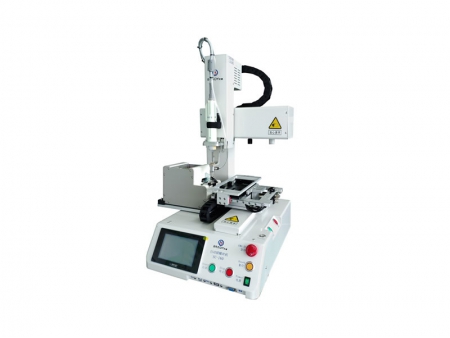

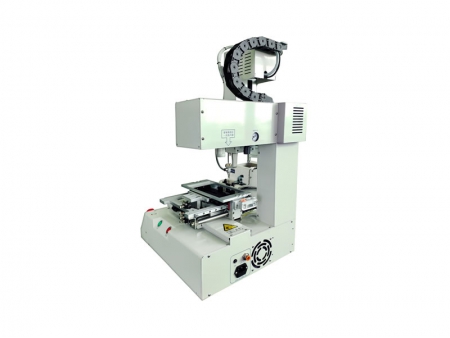

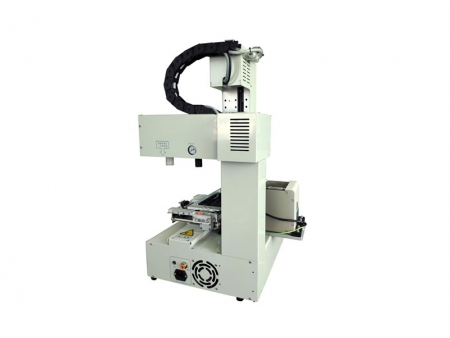

SC-160 Screw Driving Robot

Request a Quote

View All: http://automated-system.com/2-11-sc-160-screw-driving-robot.html

SC-160 Screw driving robot is designed to fasten screws of electronic products such as smartphone, wireless telephone, calculator, GPS, sound equipment, camera, small household appliances, toys, etc.

Characteristics

The screw driving robot has an automatic detection of screw missing, screw slip teeth and floating lock.

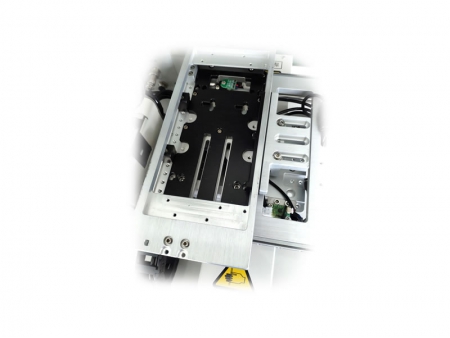

Excellent flexibility. Equipped with universal fixture which allows this screw fastening system to be used on various products.
Excellent versatility. Screws of M1.0-M4.0 can be fastened using this machine by replacing different accessories. Automatically screws loading in front and unloading from rear, realizing unmanned operation.
The screw driving robot is compact in size and is easy to pair with a production line.
Suitable for factory with limited area and its product is small in size.

Technical parameters

Dimension: 350*470*600mm (L*W*H)
Working range: 160*230*70mm (X*Y*Z)
Drive mode: 3 axis precision stepping drive
Position accuracy: ±0.02mm
Guide rail: Import slid rail
Control system: PLC Touch screen control system

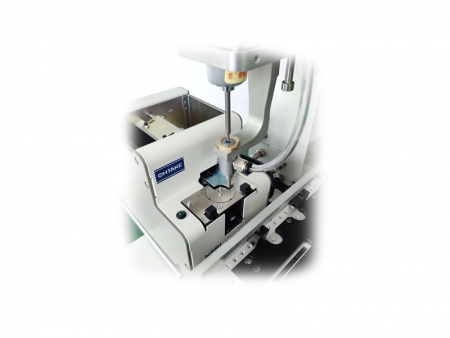

Screw feeding mode: suction type
Type of programming: Teaching type
Fastening speed: Less than 1.2S / pcs
Program memory: 100 sets, 110 points/set (max.)
COM: USB
Power supply: 220VAC、50HZ
Air pressure: ≥0.4Mpa
N.W: 30kg
