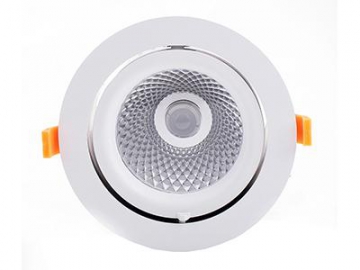

H Series LED Downlight, LED Gimbal Downlight
Request a Quote
Features
- The angle of the lamp can be adjusted in a wide range, from 0° to 45° in any vertical direction. The direction of illumination is adjusted as you like.
- ADC12 die-casting aluminum alloy radiator, streamlined design, simple, fashionable and efficient heat dissipation.
- Embedded installation, which is fast, convenient, safe and stable.
- Elephant nose like appearance design, black and white combination, fashionable and beautiful, strong sense of three dimension.
- The driver of the LED downlight is of high quality. The light has no strobes, PF>0.9. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flicker.
- The color render index(CRI) is Ra97+(2700K/3000K/4000K), which make the display nature color of the objects.
- If the CRI is up to 80, the luminous efficiency is more than 100Lm/w
Specification
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF > 0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- CRI 80+90+97+
- CCT 2700K, 3000K, 4000K, 5000K
- Luminous Efficacy 90-110 lm/W @CRI80 (whole lamp)
- Reflector Beam Angle 15°, 24°, 38°
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 45° pivot
- Housing color White and black combination
- Lifespan 50000 hours
- Warranty 3-5 Years
- 24-28W
- 28-35W
- 30-40W
Product Models
| Model No. | Power | Fixture Dimension | Cut Hole Dimension | |

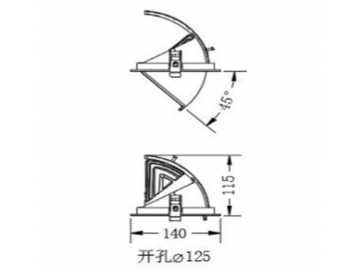

| BH-DL-24W-H | 24W | Φ140*H115mm | Φ125mm | |
| BH-DL-28W-H | 28W | | ||

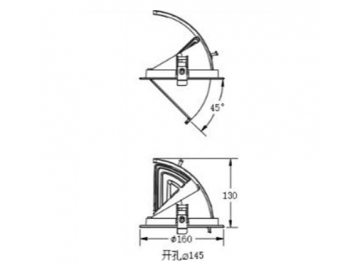

| BH-DL-28W-H | 28W | Φ160*H130mm | Φ145mm | |
| BH-DL-35W-H | 35W | | ||

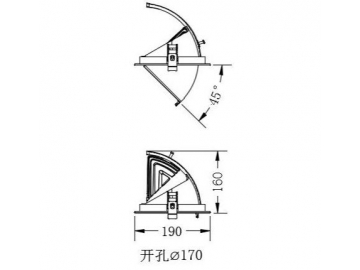

| BH-DL-30W-H | 30W | Φ190*H160mm | Φ170mm | |
| BH-DL-40W-H | 40W | |
