In blood collection tube assembly lines, this ultrasonic cleaning machine is used to thoroughly clean the test tubes using ultrasonic technology. The ultrasonic waves ensure that every tube is thoroughly cleaned, removing contaminants and ensuring the highest standards of cleanliness are met for medical applications.

Technical Specifications

• Production capacity: 60-120 sec./box (Ø13mm tube: approx. 750pcs/box, Ø16mm tube: approx. 600pcs/box)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Ultrasonic frequency: 10-40kHz
• Water source: purified water or ionized water
• Power: 5kW/AC380V
• Overall dimensions (L×W×H): 1100×900×1900mm

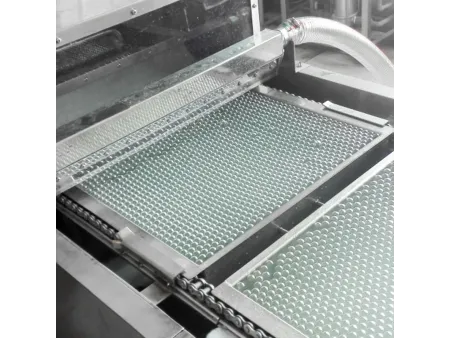

The glass tube silicification machine is used for the silicification of the inner walls and the cleaning of the outer walls of blood collection tubes. This process is crucial for ensuring the tubes' smoothness and reducing any friction that could affect the performance of the tubes during blood collection and sample processing.

Technical Specifications

• Production capacity: 60-120 sec./box (Ø13mm tube: approx. 750pcs/box, Ø16mm tube: approx. 600pcs/box)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Inner wall silicification: high-pressure circulating spraying with silicone oil
• Outer wall cleaning: high-pressure water washing
• Power: 2kW/AC380V
• Overall dimensions (L×W×H): 2600×950×1200mm

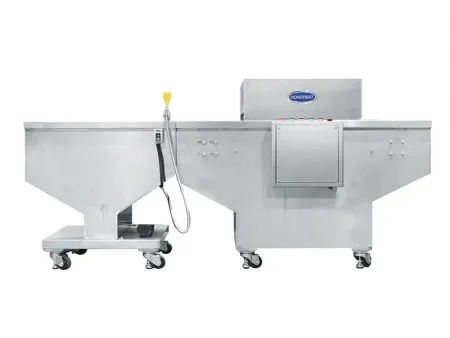

This test tube silicification machine is designed for the cleaning and silicification of both the inner and outer walls of glass test tubes, particularly for blood collection tubes.

Technical Specifications

• Production capacity: 20,000 tubes/hour
• Tube size: Ø13-Ø16×100mm, Length: 75-100mm
• Tube loading: Manual loading via trolley
• Outer wall cleaning: High-pressure water washing
• Inner wall cleaning: High-pressure ionized water washing
• Inner wall silicification: High-pressure circulating spraying with silicone oil
• Silicone oil: Water-soluble silicone oil
• Water consumption: Tap water 2T/h; Ionized water 1.5T/h
• Power: 10KW/AC380V
• Case material: SUS304 stainless steel
• Overall dimensions (L×W×H): 6500×800×1500mm

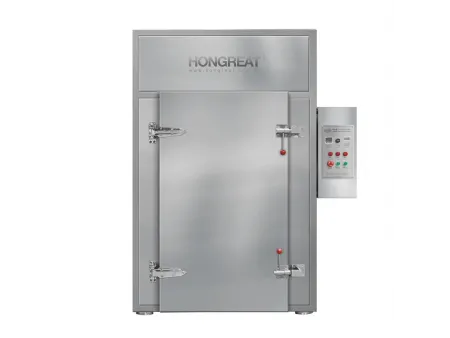

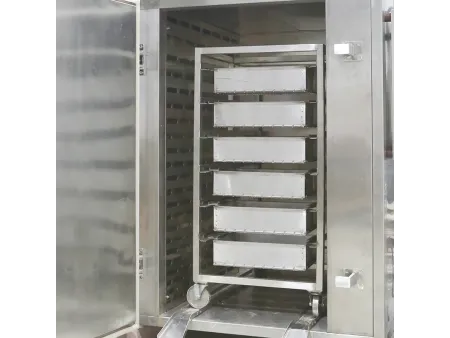

The single door drying oven is used in blood collection tube assembly lines, designed for drying various glass tubes.

Technical Specifications

• Production capacity:
  -For Ø13 tubes: ≈13,500 pcs per cycle
  -For Ø16 tubes: ≈10,800 pcs per cycle
• Tube sizes: Ø13×75mm, Ø13×100mm, Ø16×100mm

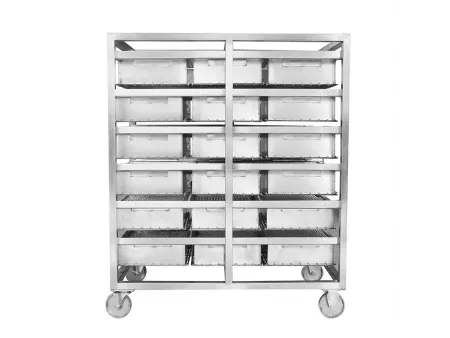

• Tube loading: Manual loading via trolley
• Temperature range: Adjustable from room temperature to 150°C
• Power supply: 10KW/AC380V
• Overall dimensions (L×W×H): 1650×1300×1900mm

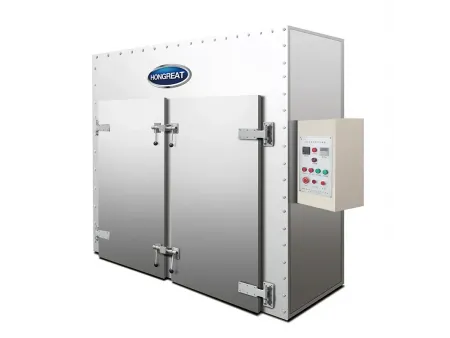

This double door drying oven is used in blood collection tube assembly lines, designed for drying various glass test tubes after cleaning and silicification.

Technical Specifications

• Production capacity:
  -For Ø13 tubes: ≈27,000 pcs per cycle
  -For Ø16 tubes: ≈21,600 pcs per cycle
• Tube sizes: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Tube loading: Manual loading via trolley
• Temperature range: Adjustable from room temperature to 150°C
• Power supply: 20KW/AC380V
• Overall dimensions (L×W×H): 2250×1300×1900mm
