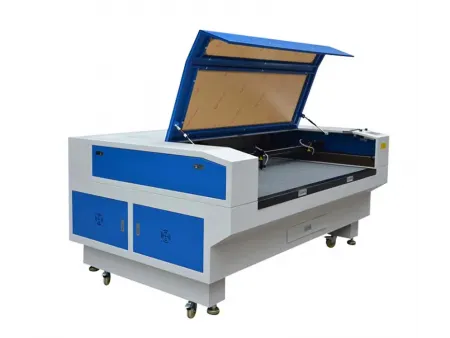

CO₂ Glass Tube Laser Cutting Machine
- Laser power 130W
- Max. cutting speed 30m/min
- Cooling method water cooling
- Machine weight 520kg
The CO₂ glass tube laser cutting machine features a centered cutting area with an open top cover for convenient loading and unloading. An independent built-in storage cabinet door keeps tools organized, while universal wheels at the bottom allow for easy equipment repositioning, adapting to flexible production needs. Core components are modularly assembled for quick disassembly and reassembly during maintenance, reducing downtime. Its 7-inch touchscreen allows new users to get started within 1 hour. Equipped with a renowned brand Reci glass tube, it offers more stable performance and excellent cost-effectiveness.
Acrylic, wooden crafts, leather, paperboard, fabric, rubber, plastic.

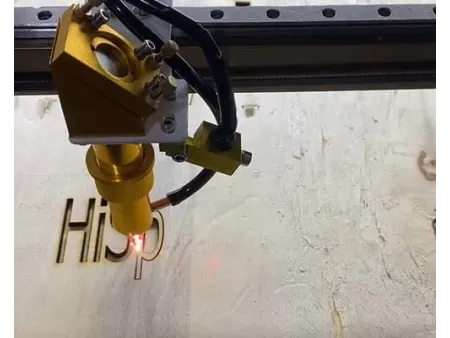

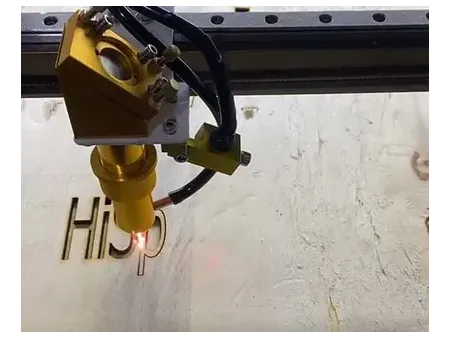

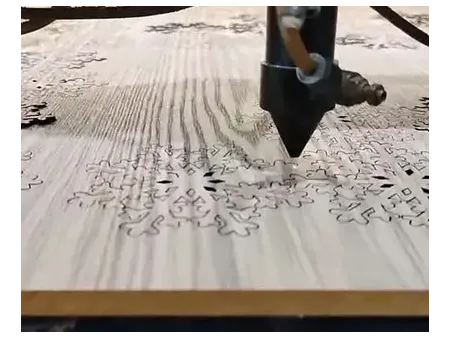

- 3mm wood laser cutting
- 10mm wood laser cutting
- Fabric laser cutting
- Paper card laser cutting
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser type CO₂ glass laser tube
- Laser power 130W
- Max. cutting speed 30m/min
- Working area 1300×900mm (customizable)
- File format BMP, PLT, DXF, DST, JPG, CDR, PNG, DSB, RAW, etc
- Operation system RD control system
- Cooling method water cooling
- Power supply 220V±10%, 50Hz / 110V±10%, 60Hz
- Machine dimensions 1130×1510×1110mm
- Machine weight 520kg
- Package size 2000×1600×1270mm
- Package weight 550kg
Laser cutting control cabinet
Integrates an advanced CNC system, supporting multi-axis linkage and real-time data processing to ensure precise and synchronized cutting trajectories with an error of ≤±0.05mm, suitable for complex graphic processing. It supports third-party software integration, such as CAD/AI drawing import, and is CE safety certified, equipped with an emergency stop button.
Honeycomb working platform
Its porous structure reduces material contact area, preventing scratches on delicate materials like mirrored acrylic, while also improving airflow circulation and reducing cutting dust residue.
Glass laser tube
Utilizes a renowned industry brand Reci laser tube, guaranteeing quality and high cost-effectiveness, with a price that is only 1/10th of imported metal tubes. Its 10.6μm wavelength is optimized for non-metal materials like acrylic, wood, and leather, providing smooth, char-free cutting edges that require no secondary polishing.
RD touch screen system
Features a 7-inch high-definition touch screen with a graphical interface, supporting drag-and-drop file import, allowing new users to master it within 1 hour. It visually displays cutting progress, equipment status, and error codes, facilitating technical team support and reducing downtime.
- Dual-head Laser System
- Rotary Axis
- Automatic Feeding
- Water Chiller
- Air Pump
- Blower
- Glass Laser Tube
- Reflective Lenses
