Parameters
- Voltage: 12/24/36/48V DC
- Maximum load capacity: 5000N
- No-load velocity: 5mm/s
- Stroke: 30-800mm，customized

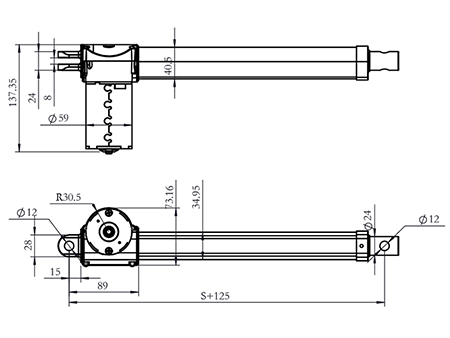

- Minimum installation distance: s 130mm
- Installation method: Using install holes in the front and back
- Noise level: 52dB
- Frequency: 25%
- Option: Hall sensor

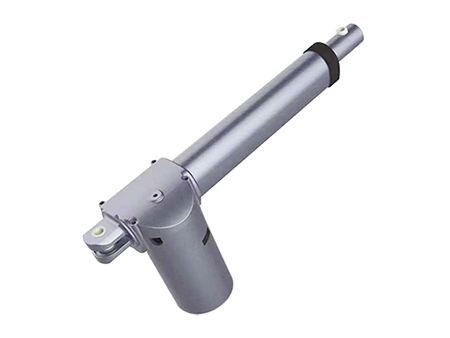

- The linear actuator features a small size, large maximum load capacity, low weight, low noise and excellent self-locking performance.
- It is equipped with a built-in limit switch. Its motor will automatically turn off at the end of each stroke.
- The linear actuator uses a metal gearbox and features a long service life.
- This product is designed with a strong and durable structure.
- It carries out a variety of functions, including lift, drop, tilt, and rotate.
- A manual controller and power source are optional.
- This linear actuator cis n be widely used in massage chairs, electric massage sofas, electric beds, smart lounge chairs and other motorized furniture.

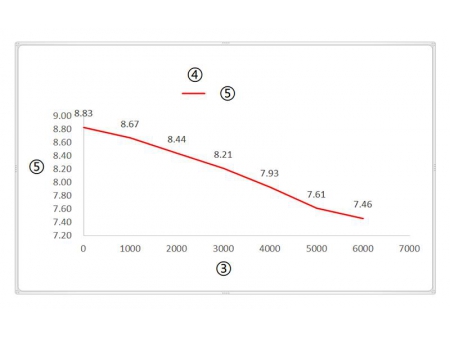

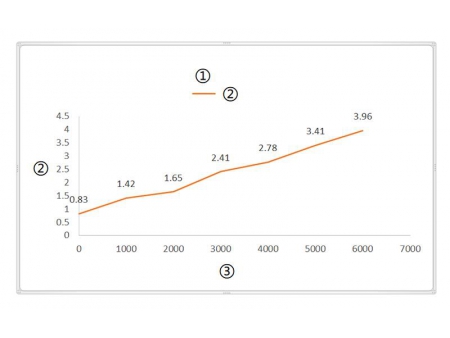

Curve graph
① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)
Code of Parameters| Code of Parameters | |||||
| code | Rated load（N） | Rated current（A） | Rated speed（mm/s） | ||
| Push | Pull | No-load(32VDC) | Full-load(24VDC) | ||
| Standard motor (2600RPM) | |||||
| A | 5000 | 3000 | 5 | 5 | 3 |
