Linear Guide, Roller Type Linear Motion Guide
Request a Quote
- Material: Aluminum alloy
- Rail width: 60mm
- Optional Length: 100mm-4000mm
- Sliding block type: 3 /4, with self-locking hand-wheel slider
- Max load of single slider: 90KG
- Straightness/Curvature: ≤0.15/1000mm
The travel length of the linear guides can be customized according to the specific requirements of customers.
The number of sliders are optional, and then you can choose them in the light of the size of the load.
Equipped with four sliders, this series linear guides of KNZ20 features low friction and high motion stability.

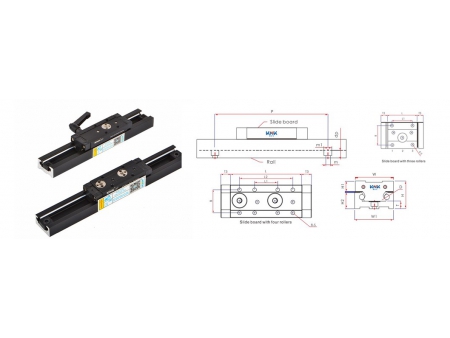

PDF down| Model | Set KNZ Rail dimensions | KNH Block dimensions | ||||||||||||||||||||||
| KNZ | H | W1 | H2 | dp | P | D | Mr g/m | T | ml | m | W | H1 | T3 | L | B | L1 | L2 | S | QP | BL（N） | DT（N-m） | |||
| Yo | Zo | Mxo | Myo | Mzo | ||||||||||||||||||||
| 10 | 24 | 28 | 14 | 3.3 | 60 | 5 | 1051 | 5 | 6 | 3.4 | 26 | 8 | 10 | 47 | 18.5 | 18.5 | M4 | 3 | 343 | 322 | 6.4 | 6.8 | 7.1 | |
| 63 | 30 | 4 | 450 | 420 | 10.2 | 11.3 | 11.5 | |||||||||||||||||
| 15N | 32 | 38 | 18.5 | 4.5 | 120 | 6 | 1651 | 8 | 8 | 4.5 | 37 | 12 | 11 | 60 | 26 | 26 | 60 | M5 | 3 | 490 | 460 | 7.4 | 7.8 | 10.2 |
| 80 | 4 | 700 | 660 | 13.2 | 14 | 14.5 | ||||||||||||||||||
| 15 | 32 | 46 | 18.5 | 4.5 | 120 | 6 | 1784 | 8 | 8 | 4.5 | 36 | 12 | 11 | 52 | 32 | 36 | M5 | 3 | 490 | 460 | 9.2 | 9.8 | 13.8 | |
| 68 | 4 | 700 | 660 | 19.8 | 21.1 | 22.4 | ||||||||||||||||||
| 20N | 35.2 | 46.3 | 22.5 | 5.5 | 120 | 8 | 2427 | 9 | 9.5 | 5.5 | 46 | 12 | 11 | 80 | 38 | 30 | 78 | M6 | 3 | 820 | 700 | 15.4 | 25.4 | 29.4 |
| 106 | 4 | 1400 | 1000 | 42 | 21.5 | 61.6 | ||||||||||||||||||
| 20 | 36 | 60 | 22.5 | 5.5 | 120 | 8 | 2744 | 9 | 9.5 | 5.5 | 58 | 12 | 12 | 72 | 50 | 40 | M6 | 3 | 820 | 700 | 18.2 | 52 | 421 | |
| 94 | 4 | 1400 | 1000 | 44 | 52 | 72.8 | ||||||||||||||||||
| 25 | 44 | 69 | 26 | 7 | 120 | 10 | 3873 | 10 | 10 | 6.6 | 68 | 16 | 12 | 100 | 56 | 56 | M8 | 3 | 1470 | 1260 | 4158 | 48.51 | 67.62 | |
| 130 | 57 | 75 | 4 | 2100 | 1800 | 96.6 | 118.8 | 138.6 | ||||||||||||||||
