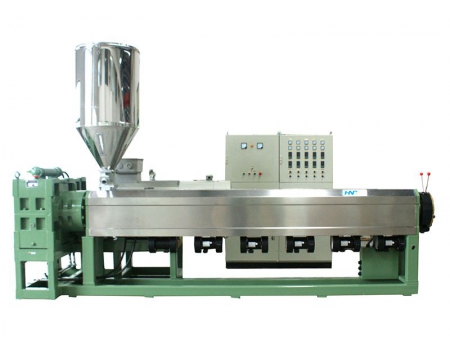

High Speed Wire Extrusion Line, EX Series
Request a Quote

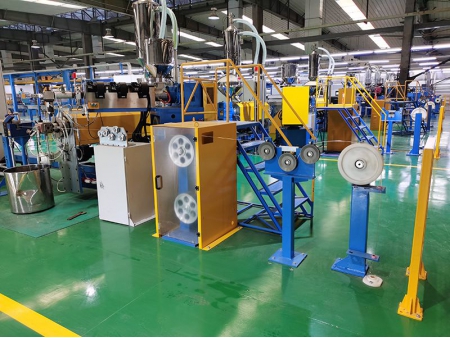

Cable extruder line for manufacturing building wires and cables
Introducing our high-speed wire extrusion line specifically designed for the manufacturing of building wires. Our cable extrusion machinery allows you to select specific screws and barrels to match various extrusion materials, including PVC, PE, LSNH, Teflon, and Nylon.
The extrusion heads offer adjustable and fixed concentric options, providing flexibility to cater to single-layer, double-layer, and filling functionalities based on customer requirements.
Features
- Our high-speed wire extrusion line incorporates top-quality screws and barrels made in Taiwan, ensuring high extrusion output and excellent performance.
- Depending on the characteristics of the extrusion material, our cable extrusion machinery allows for the use of specialized rotating screws, enabling efficient extrusion.
- Our extruders feature double-rod chain-driven fixtures, providing reliable and precise movement. Other fixed components have automatic centering functionality for improved stability.

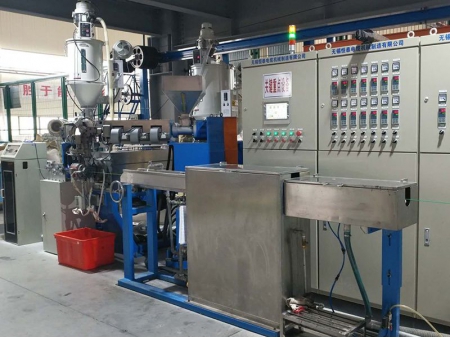

- The main control panel features an HMI (Human-Machine Interface) and traditional buttons, offering simple and intuitive operation for your production team.
- Our cable extrusion machinery offers flexible take-up options to meet your specific requirements. You can choose from bundling, single-take-up, dual-reel take-up, or semi-automatic dual-reel take-up based on your preferences.
- The HMI and PLC control system allows convenient modification, storage, and adjustment of wire diameter, detection, line speed, spark detection, and other process parameters via the touchscreen interface.
- The electrical circuit control is implemented using Mitsubishi programmable logic controllers (PLCs), ensuring precise and reliable operation.
- Our cable extrusion machinery utilizes temperature controllers from the Japanese RKC series and solid-state relays (SSRs) for accurate and stable temperature control.
- We incorporate material hopper dryers and automatic suction devices from reputable Taiwanese brands to ensure efficient material handling.
Specifications
| Model | Screw parameter | Max Extrude capacity (kg/h) | Finished Outer Diameter (mm) | ||||
| Diameter (mm) | L/D | Speed (RPM) | PVC | LDPE | LSNH | ||
EX-40G | 40 | 25:1 | 110 | 70 | 14 | 0.8-3 | |
EX-50G | 50 | 25:1 | 110 | 80 | 35 | 1-6 | |
EX-60G | 60 | 25:1 | 110 | 100 | 60 | 22 | 2-8 |
EX-70G | 70 | 25:1 | 110 | 180 | 130 | 36 | 3-15 |
EX-80G | 80 | 25:1 | 110 | 240 | 180 | 48 | 5-20 |
EX-90G | 90 | 25:1 | 100 | 360 | 240 | 65 | 8-25 |
EX-100G | 100 | 25:1 | 90 | 650 | 550 | 90 | 10-30 |
EX-120G | 120 | 25:1 | 90 | 550 | 15-40 | ||
EX-150G | 150 | 25:1 | 60 | 900 | 550 | ||
EX-200G | 200 | 25:1 | 60 | 1300 | 1100 | 750 | |
