High Pressure Double Fixed Displacement Vane Pump

Request a Quote

Website: http://hydraulicparts-en.com/2-2-5-high-pressure-double-fixed-displacement-vane-pump.html

This series is composed of two high-pressure vane pumps, designed to provide a dual hydraulic source for hydraulic circuits requiring two simultaneous actions. It features a single suction port, which saves piping, simplifies use, and reduces costs.

Technical Specifications

Model	Delivery capacity (cc/rev)				Max. pressure (kgf/cm²)	Speed (rpm)
	Delivery capacity (cc/rev)					Max.	Min.
	at 1000rpm	at 1200rpm	at 1500rpm	at 1800rpm		Max.	Min.
PV2R1-06	6.2	7.4	9.3	11.2	210	1800	1200
PV2R1-08	8.1	9.7	12.1	14.6	210	1800	950
PV2R1-10	10.1	12.1	15.1	18.9	245	1800	950
PV2R1-12	12.2	14.6	18.3	21.9	245	1800	950
PV2R1-14	13.6	17.1	21.5	25.7	245	1800	950
PV2R1-17	16.6	20.5	25.6	30.7	245	1800	950
PV2R1-19	18.6	23	28.8	34.5	245	1800	950
PV2R1-23	22.7	27.9	34.9	41.9	245	1800	950
PV2R1-25	25.3	31.3	39.1	46.9	245	1800	950
PV2R1-31	31	37.3	46.6	—	245	1500	950
PV2R2-26	26.2	31.4	39.3	47.1	245	1800	950
PV2R2-33	33	38.5	48.1	57.7	245	1800	950
PV2R2-38	38.2	45.8	57.3	68.7	245	1800	950
PV2R2-41	41.3	49.2	61.5	73.8	210
PV2R2-47	47.2	57.8	71.4	86.7	245	1800	950
PV2R2-53	53.1	63.7	79.6	95.5	245	1800	950
PV2R2-59	60.2	72.7	90.3	108.3	210	1800	950
PV2R2-65	65.3	78.3	97.9	117.5	210	1800	950

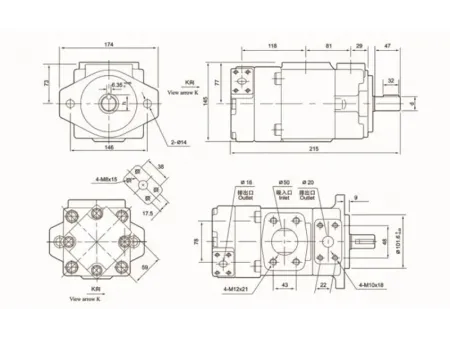

PV2R12

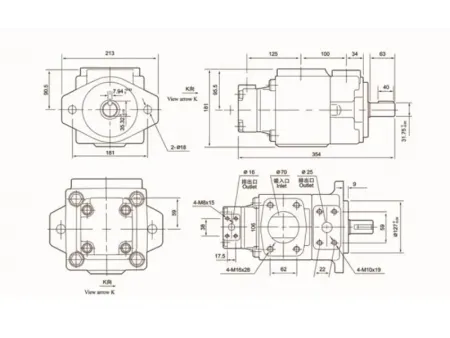

PV2R13
PV2R23
