High/Low Pressure Fixed Displacement Vane Pump
Request a Quote
This pump is designed as a high-low pressure pump by sharing a common shaft and a single motor. It features low noise, high flow, low cost, and a high volumetric efficiency design.
Technical Specifications
| Model | Delivery capacity (cc/rev) | Max. pressure (kgf/cm²) | Speed (rpm) | ||||
| Max. | Min. | ||||||
| at 1000rpm | at 1200rpm | at 1500rpm | at 1800rpm | ||||
| | 48.3 | 57.96 | 72.4 | 86.9 | 90 | 1800 | 900 |
| | 61.5 | 73.8 | 92.2 | 110.7 | 90 | 1800 | 900 |
| | 75.5 | 90.6 | 113.2 | 135.9 | 90 | 1500 | 900 |
| | 94.2 | 113 | 141.3 | 169 | 70 | 1500 | 900 |
| | 116.3 | 139.6 | 174 | — | 70 | 1200 | 900 |
| | 6.2 | 7.4 | 9.3 | 11.2 | 210 | 1800 | 1200 |
| | 8.1 | 9.7 | 12.1 | 14.6 | 245 | 1800 | 950 |
| | 10.1 | 12.1 | 15.1 | 18.9 | 245 | 1800 | 950 |
| | 12.2 | 14.6 | 18.3 | 21.9 | 245 | 1800 | 950 |
| | 14.3 | 17.1 | 21.5 | 25.7 | 245 | 1800 | 950 |
| | 17.1 | 20.5 | 25.6 | 30.7 | 245 | 1800 | 950 |
| | 19.2 | 23 | 28.8 | 34.5 | 245 | 1800 | 950 |
| | 23.3 | 27.9 | 34.9 | 41.9 | 245 | 1800 | 950 |
| | 26.1 | 31.3 | 39.1 | 46.9 | 245 | 1800 | 950 |
| | 31.1 | 37.3 | 46.6 | 55.8 | 245 | 1500 | 950 |

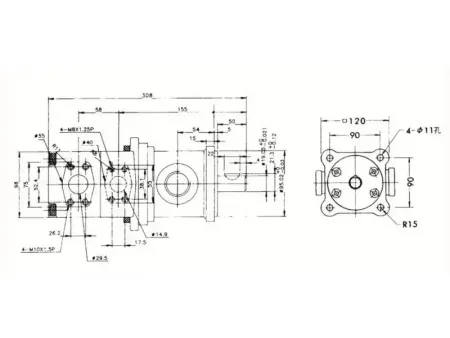

- 50T PV2R1

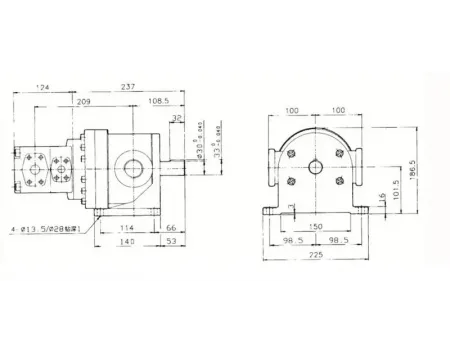

- 150T PV2R1
