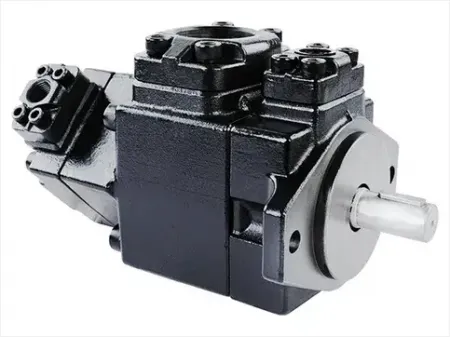

Double Fixed Displacement Vane Pump
Request a Quote
Features
- This pump features a design with large flow, low noise, and high volumetric efficiency.
- This series of pumps can be combined with a small flow, high-pressure pump to form a high-low pressure pump, saving motor power.
- Shares a common shaft and motor, saving space.
Technical Specifications
| Model | Vane pump | Speed (rpm) | ||||
| Max. pressure (psi) | Delivery capacity (cc/rev) | Max. pressure (psi) | Delivery capacity (cc/rev) | Max. | Min. | |
| | 3000 | 1~12 | 1000psi | 7 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 12 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 14 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 17 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 20 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 23 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 26 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 30 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 36 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 40 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 43 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 48 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 61 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 75 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 94 | 1800 | 900 |
| | 3000 | 1~12 | 1000psi | 116 | 1800 | 900 |

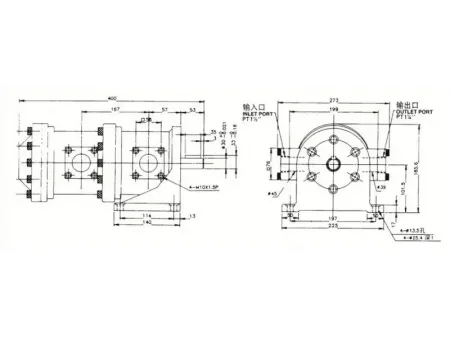

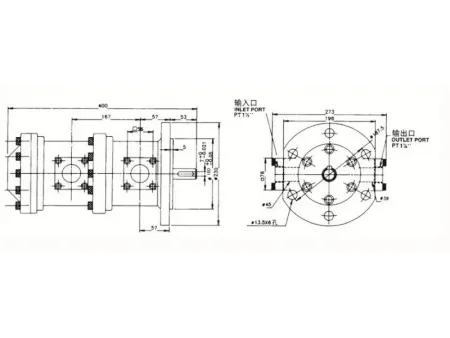

- 150F 150F Flange Type
- 150F 150F Foot Type
