Diesel Mining Dump Truck
Rigid dump truck with four-wheel drive
Key Parameters
- Engine power 775HP
- Rated payload 91t
- Dump body capacity 45/53m³
Applications
Transportation in large-sized open-pit mines
| Model | |
| Kerb weight (t) | 46 |
| Rated payload (t) | 91 |
| Engine power (HP) | 775 |
| Axle load (t) | 30 50 50 |
| Cab | 4th generation left hand cab |
| Suspension system | Full hydropneumatic suspension |
| Steering system | Fully hydraulic steering |
| Tire | 18.00R25 |
| Dump body capacity (m³) | 45/53 |
| Max. speed (km/h) | 40 |
| Drive mode | 6×4 |
- Our mining dump trucks can accommodate loading equipment like 1250 excavators, from both the side and rear of the dump truck.
- With a “raised rear long overhang” dump body design, our mining dump trucks can discharge over a 1000mm high retaining wall with thorough unloading, with no need of a loader to push material. They also allow large materials to unload without jamming, enhancing unloading safety.
- With a broader range of equipment compatibility, our mining dump trucks can match with 7-10m³ excavators or electric shovels, filling the truck with 4-6 bucket, achieving optimal loading efficiency. Additionally, our dump trucks can withstand a loading impact mass of 20t/bucket.

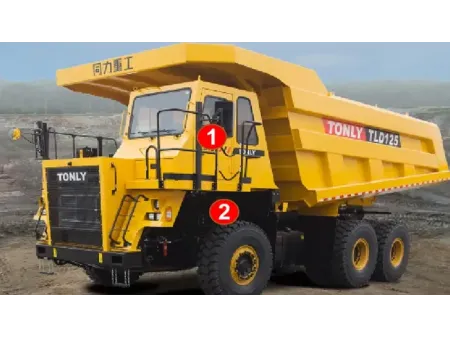

In addition to high reliability and excellent ergonomic performance, the rigid frame structure is designed with double doors, making it safe and convenient for operation.
The fully hydraulic steering gear can output a large steering torque, enabling easy operation and high reliability.
Off-road mining engine is professionally adjusted for off-road conditions, with strong power, low fuel consumption and high reliability.

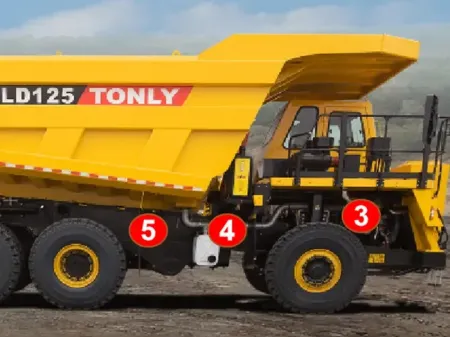

The mining transmission with single box and dual intermediate shaft, jointly developed by Tonly and FAST, is added with a forced lubrication device, presenting strong torque transmission capacity and high reliability. The optional integrated hydraulic retarder can reduce the consumption of brake shoes and improve the safety of the vehicle.
The frame is a welded casting structure, and the key stress-bearing parts are made of castings, which can meet the requirements of 10m³ electric shovel loading, with extra-high loading capacity, excellent resistance to loading impact, high reliability, and a service life of more than 8 years.
The dustpan dump body can be loaded with 10m³ electric shovel and realize smoother loading and more thorough unloading. It can also be discharged to 1,000mm high retaining wall without the need of pushing the materials by a loader. Also, it can transport big stones without jamming, making it safer to unload.
OTR tire is equipped for different working conditions, with good adaptability to working conditions and long service life.
The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.
With high bearing capacity and good comfort, the fully hydro-pneumatic suspension is professionally tuned to meet the load-bearing capacity when fully loaded while ensuring comfort when unloaded.
- Location: Jiangda County, Qamdo City, Xizang Autonomous Region
- Annual extraction: 400 million tons
- Site conditions: heavy-load uphill and downhill transportation (transportation distance: 3km)
- Environmental factors: high altitude, low temperature, frozen earth
- Recommendations: TL875, TL875B, TL875K, TLD125
