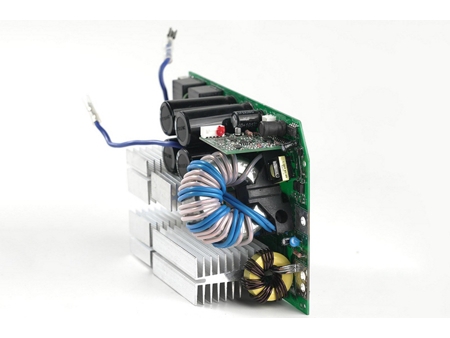

Circuit Board for 110/220V MMA welder
Request a Quote

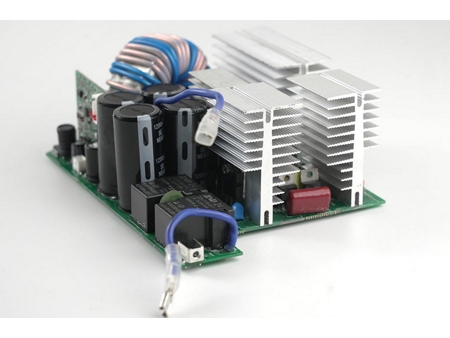

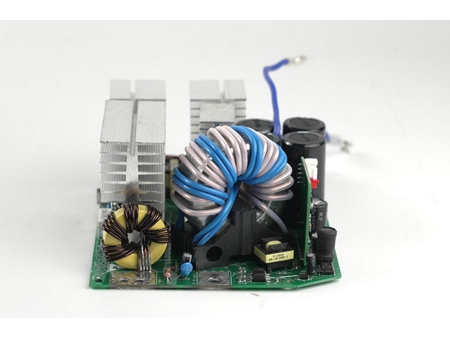

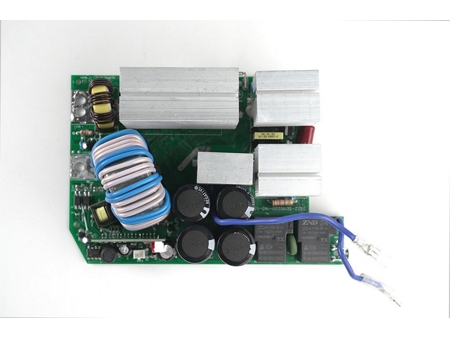

ZX7-110/220V 110/130A
Equipped with this circuit board, the welding machine possesses the following features
- Advance IGBT inverter technology and MCU control: offers compact size, light weight, stable performance.
- Dual-voltage input: it can be connected to 110V/220V without other tools
- Wide input voltage range: single-phase100-260V, 50/60HZ
- Easy to strike arc
- Premium welding performance: it can weld workpieces with a minimum thickness of 0.8mm. Support the welding of cellulose electrode, like E6010, E6011.
| Power Voltage | 110/220V 1ph | Input Voltage Frequency | 50/60hz |
| Input Current | 38/24A | Duty Cycle | 60% |
| Rated Input Power | 5.2KVA | Efficiency | 85% |
| No-load Voltage | 75V | Welding rod | Up to 3.2mm(1/8") |
| Output Voltage | 25.2V | Insulation Class | H |
| Rated Output Current at 220V | 10-130A | Weight | 1.1kg |
| Rated Output Current at 110V | 10-110A | Dimension | 19.5*13.3*8.2 cm |

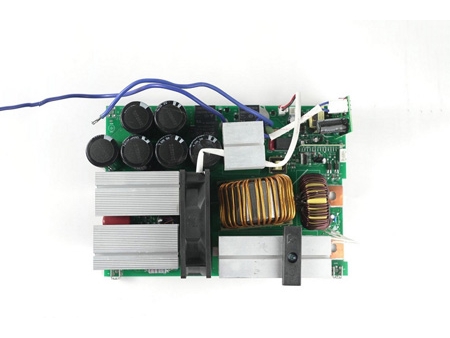

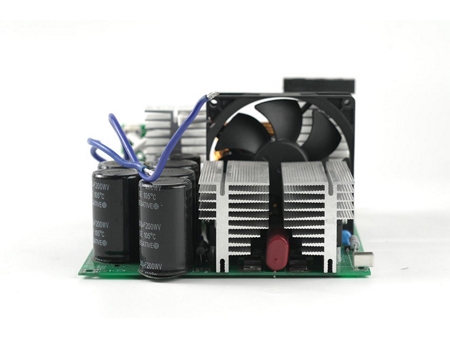

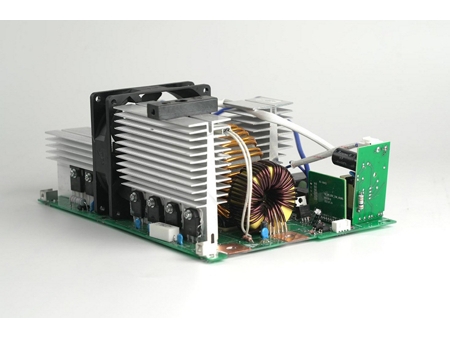

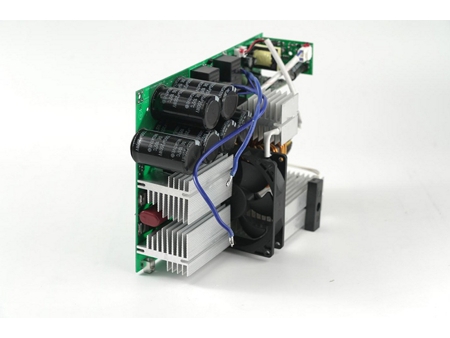

ZX7-110/220V 130/200A
Equipped with this circuit board, the welding machine possesses the following features
- Advance IGBT inverter technology and MCU control: offers compact size, light weight, stable performance.
- Dual-voltage input: it can be connected to 110V/220V without other tools
- Wide input voltage range: single-phase100-260V, 50/60HZ
- Easy to strike arc
- Premium welding performance: it can weld workpieces with a minimum thickness of 0.8mm. Support the welding of cellulose electrode, like E6010, E6011.
| Power Voltage | 110/220V 1ph | Input Voltage Frequency | 50/60HZ |
| Input Current | 45/40A | Duty Cycle | 60% |
| Rated Input Power | 9.2KVA | Efficiency | 85% |
| No-load Voltage | 75V | Welding rod | 1.6mm(1/16" )-5.0mm(3/16") |
| Output Voltage | 28V | Insulation Class | H |
| Rated Output Current at 220V | 10-200A | Weight | 2kg |
| Rated Output Current at 110V | 10-130A | Dimension | 23.6*17*10 cm |

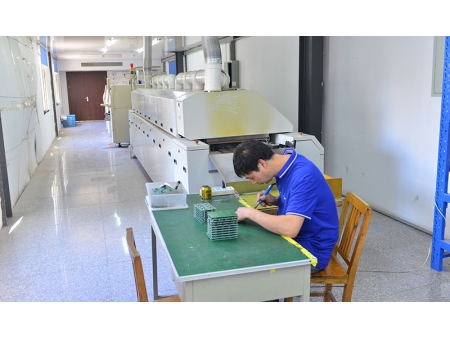

Quality Inspection
We conduct comprehensive quality inspections throughout the production process, including tests for welding performance, circuit stability, safety, durability, aging, high and low temperatures, vibration, welding, and functionality. This ensures every welding machine is manufactured to the highest quality standards.
If you have any questions about our welders, please email us or give us a call.
