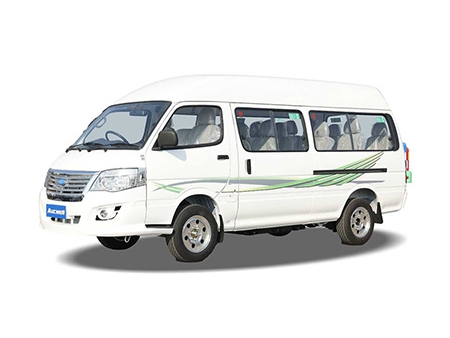

Electric Minibus 5.3 Meters

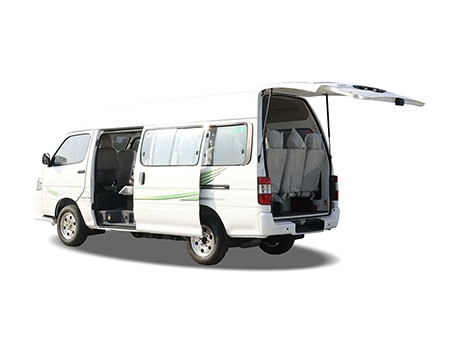

This electric minibus does everything but compromise. With a default 9 seater configuration, the seats installed inside can be detached to make room for up to 11 passengers. The electric vehicle length extends to 5,300mm, providing more legroom and headspace for passengers and making the trip more pleasant. In addition, the lower car body of this electric minibus ensures better stability and safety, allowing for a smoother ride.

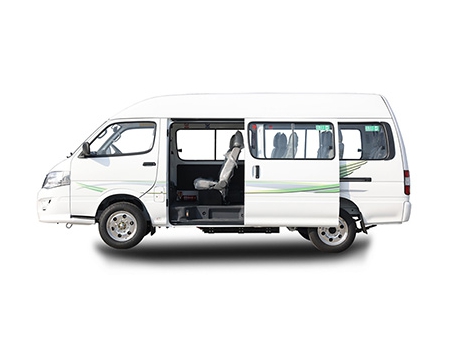

The classic sliding door makes the pick-up and drop-off of passengers more convenient. The chassis suspension and the rotary gear shift make your driving easier and more flexible.
We provide this minibus of left-hand drive and right-hand drive models.
| Main Parameters | Vehicle Dimensions (L*W *H) (mm) | 5,300*1,700*1,980mm (M: 2,080 , H: 2,260) |
| Wheel Base (mm) | 2,890 | |
| Curb Weight / Total Mass (kg) | 1,760/3,360 | |
| Payload Capacity (kg) | 1,600 | |
| Approach Angle / Departure Angle (°) | 18 / 17 | |
| Front Suspension / Rear Suspension (mm) | 685 / 875 | |
| Front / Rear Tracks (mm) | 1,460 / 1,440 | |
| Steering Position | Left Hand Drive | |
| Dynamic Performance | Max. Speed (km/h) | 100 km |
| Climbing Capacity (%) | 20 | |
| Battery Capacity (kWh) | CATL-41.86 kwh | |
| Peak Torque (kW/Nm) | 80/300 | |
| Driving Range (km) | 245 KM | |
| Chassis Steering systems | Drive Mode | Middle-engine Rear-drive |
| Front Suspension | MacPherson Independent Front Suspension | |
| Rear Suspension | Vertical 5 plate spring type | |
| Steering Type | EPS Electronic Power Steering | |
| Wheels Brake System | Tire Size | 195/70 R15LT |
| Wheel Material / Tire | Steel / 4 pcs | |
| Brake Type | Front Disc/ Rear Drum | |
| Parking Brake | Ratcheting Zip Type | |
| Body Structure | Body Structure | Load-supporting |
| NO. of Doors | 4Pcs | |
| NO. of Seats | 10-11 Seats |
| Remark：● Standard, ○ Optional | ||
| Charging Configuration | Fast Charger Compliant with Euro Standards | ● |
| Euro-Standard 7 kW AC Slow Charger | ○ | |
| Safety Device | Pedestrian Reminder | ● |
| Driver’s Seat Belt Reminder | ● | |
| ABS Anti-lock Braking System | ● | |
| Three-point Safety Belts | ● | |
| Controllability | Reverse Radar | ● |
| Wheel-Slip Control | ● | |
| External Configuration | Latest Design on Front Grille | ○ |
| Front Fog Lamps | ● | |
| Headlamp Height Adjustable | ● | |
| Rear Foot Rest | ● | |
| Central Lock | ● | |
| Remote Control Key | ● | |
| Internal Configuration | Front Door Electric Window | ● |
| Driver and Co-pilot Sunshield | ● | |
| Normal Flooring | ● | |
| Normal Ceiling | ● | |
| Fabric Seat with High Foam Sponge | ● | |
| Enclosed Steel Plate Partition | ● | |
| Multimedia Configuration | Radio USB | ● |
| NO. of Speaker | 2 | |
| AC | Air Conditioner (for cooling) | ● |
| PTC Heater | ● | |
| Safety Equipment | Reflective Vest | ● |
| Warning Triangle | ● | |
-
Equipped with ABS EBD system, increasing the vehicle safety.
-
Optional driving modes of D/S (Drive/Sport) according to road conditions.
-
Adopted with the dual-circuit hydraulic braking system that ensures the vehicle’s stable performance.
-
Equipped with EPS (Electric Power Steering) that provides a better driving experience.
-
Battery heating system allows the vehicle to perform better in cold weather and reduces electricity consumption.
-
GB/T fast charging and 7kW AC fast charging, improving the flexibility of charging.
