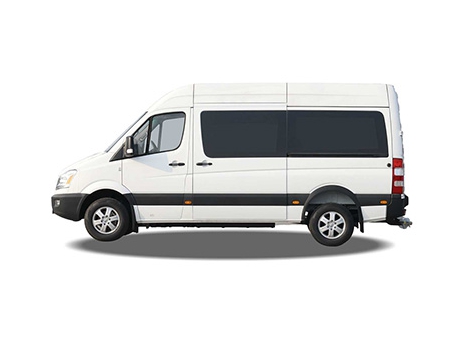

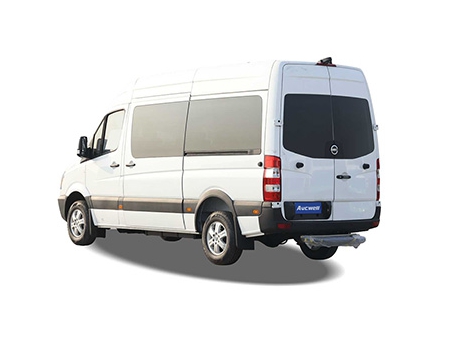

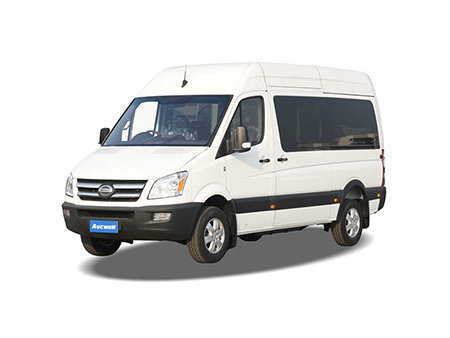

Electric Minibus 5.9 Meters
This electric minibus is designed taking into account both aesthetics and comfort at the same time. With a specially-designed cab, a big windshield, and ergonomically-made seats, both the driver and passengers have better vision and ride experience. With a body length of 5,960mm, it provides a payload capacity up to 12.28 cubic meters. The number of rear seats can be customized based on the clients’ requirements.
This is a versatile electric vehicle for multiple purposes. With the car body and frame made of high-strength materials, this electric vehicle boasts high reliability and safety. The advanced interior hardware configuration, the impressive décor, and the comfortable seats make sure your journey is pleasant. On top of the battery heating system, we also equip the bus with a battery water cooling system, allowing normal function of the car during hot weather. The flooring of the electric minibus is made of slip-proof aluminum alloy for increased wear-resistance.
We provide this minibus in both left-hand drive and right-hand drive version.
| Main Parameters | Vehicle Dimensions (L*W*H) (mm) | 5,960*2,020*2,700 |
| Wheel Base (mm) | 3,665 | |
| Curb Weight / Total Mass (kg) | 2,720 / 4,490 | |
| Payload Capacity (kg) | 1,640 kg | |
| Approach / Departure Angle (°) | 21 / 17 | |
| Front / Rear Suspension (mm) | 1,020 / 1275 | |
| Front / Rear Tracks (mm) | 1,720 / 1,716 | |
| Steering Location | Left Hand Drive | |
| Dynamic Performance | Max. Speed (km/h) | 100 km/h |
| Climbing Capacity (%) | 20% | |
| Battery Capacity (kWh) | CATL-73.6 kWh | |
| Peak Torque (kW/Nm) | 100 / 750 | |
| Driving Range (km) | 288 km | |
| Chassis Steering systems | Drive Mode | Front-engine Rear-drive |
| Front Suspension | Horizontal plate spring type independent suspension | |
| Rear Suspension | Vertical 3 plate spring type | |
| Steering Type | EHPS Electronic Hydraulic Power Steering | |
| Wheels Brake System | Tire Size | 215/75 R16LT 12RP |
| Wheel Material / Tire | Aluminum Wheels / 4 | |
| Brake Type | Front Disc/ Rear Drum | |
| Parking Brake | Ratcheting Zip Type | |
| Body Structure | Body Structure | Load-supporting |
| NO. of Doors | 5Pcs, Sliding door both side | |
| NO. of Seats | 15-17 Seats |
| Remark：● Standard, ○ Optional | ||
| Charging Configuration | Fast Charger Compliant with Euro Standards | ● |
| Euro-Standard 22kW AC Slow Charger | ○ | |
| Safety Device | Pedestrian Reminder | ● |
| Driver’s Seat Belt Reminder | ● | |
| ABS EBD | ● | |
| Three-point Safety Belts | ● | |
| Controllability | Reverse Radar | ● |
| Inner Rear-view Mirror | ● | |
| LCD Instrument | ● | |
| Wheel-Slip Control | ● | |
| External Configuration | Daytime Lamps | ● |
| Automatic Headlight | ● | |
| Side Mark Lamp | ● | |
| Headlamp Height Adjustable | ● | |
| Electric Mirrors | ● | |
| Upper Brake Lamps | ● | |
| Rear Foot Rest | ● | |
| Central Lock | ● | |
| Remote Control Key | ● | |
| Internal Configuration | Front Door Electric Window | ● |
| Driver and Co-pilot Sunshield | ● | |
| Aluminum Flooring | ● | |
| Normal Ceiling | ● | |
| Fabric Seat with High Foam Sponge | ● | |
| Enclosed Steel Plate Partition | ● | |
| Multimedia Configuration | MP5 (Android) Back up Camera | ● |
| NO. of Speaker | ● | |
| Car Recorder | 2 | |
| AC | Air Conditioner (for cooling) | ● |
| PTC Heater | ● | |
| Safety Equipment | Reflective Vest | ● |
| Warning Triangle | ● | |
| Spare Tire | ● | |
| Jack (CE Mark) | ● | |
-
Customization of the number of rear seats.
-
Barn door that is convenient for good loading and unloading.
-
Equipped with ABS EBD system, increasing the vehicle safety.
-
EqOptional driving modes of D/S (Drive/Sport) according to road conditions.
-
Adopted with the dual-circuit hydraulic braking system that ensures the vehicle’s stable performance.
-
Equipped with EPS (Electronic Hydraulic Power Steering) that provides a better driving experience.
