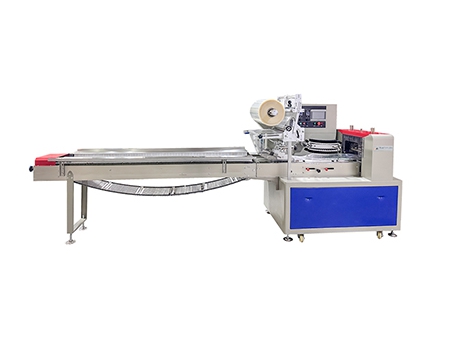

Top Reel Horizontal Flow Wrapper
Request a Quote
The horizontal flow wrapper’s packaging film reel is mounted on the top of the transverse sealing jaw to wrap regular products like bread, chocolate and more.
- Bag format: pillow bag. A punching hole or gusset is optional.
- Application: packaging of regular products including cookies, chocolates, bakery products, instant noodles, medicines, commodities, industrial components and more.
- Products with trays or paper boxes can also be packaged.
- Packaging film: various kinds of films applicable.
Features
- The double frequency converter control helps the user save time and minimizes machine operator errors. Once the bag length parameters are saved, the system will perform a precise film positioning and cutting according to the set parameters.

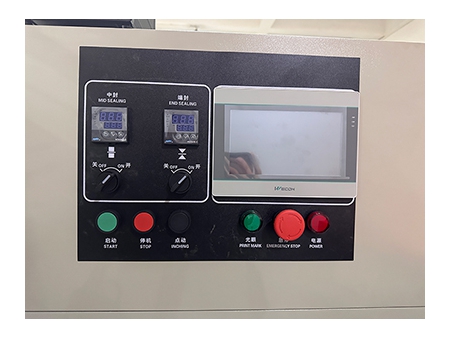

- HMI facilitates parameter setting and adjustment.
- A failure self-diagnosis function clearly shows the failure reasons.
- The highly sensitive color code photo eye mechanism precisely tracks and controls the cutting and sealing position.
- Independent PID temperature control is suitable for the usage of different packaging film materials.
- Positioned stop without film sticking into the cutting knife, reducing film waste.
- Reliable and concise drive system eases maintenance.
- Complete software control facilitates function adjustment and technology upgrade.
Specifications
| Model | | | | | |
| Bag width (mm) | 30-110 | 50-160 | 50-160 | 50-180 | 80-220 |
| Bag length (mm) | 60-190 or 120-280 | 65-190 or 120-280 | 60-190 or 120-280 | 130-450 | 150-450 |
| Product height (mm) | Max.40 | Max.55 | Max.60 | Max.70 | Max.80 |
| Film roll diameter (mm) | Max.320 | Max.320 | Max.320 | Max.320 | Max.320 |
| Packaging speed | 40-180bpm | 40-180bpm | 40-180bpm | 30-180bpm | 30-150bpm |
| Machine dimension (mm) | L3770*W640*H1320 | L3770*W720*H1450 | L3770*W745*H1320 | L4020*W820*H1450 | L4020*W900*H1450 |
| Machine weight | About500kg | About600kg | About650kg | About750kg | About800kg |
If you are interested in our top reel horizontal flow wrapper, please feel free to contact us!
