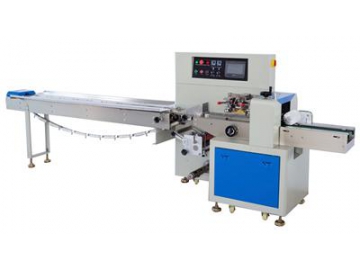

KCH-250X Horizontal flow wrapper
Request a Quote
The KCH-250X Flow wrapper with bottom reel holder was developed to pack loose, irregularly shaped products. Compatible with film as wide as 250mm, it is especially suited for candies, biscuits and other closely wrapped products.

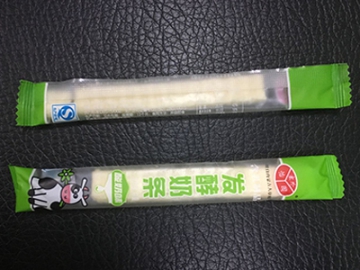

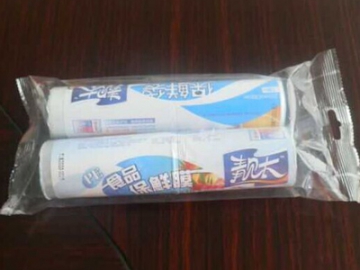

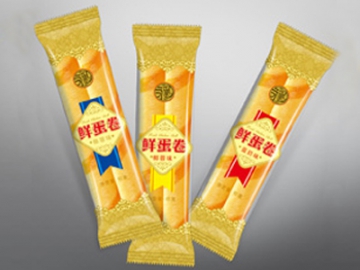

Samples
Bag types

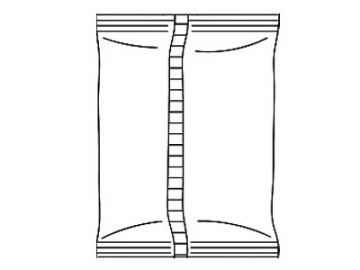

- Pillow bag
- Pillow bag with euro hole
- Pillow bag with round hole

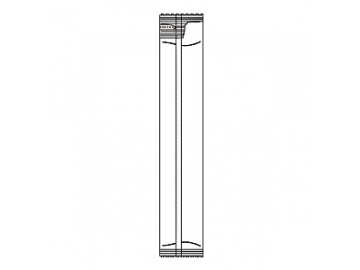

- Stick seal bag

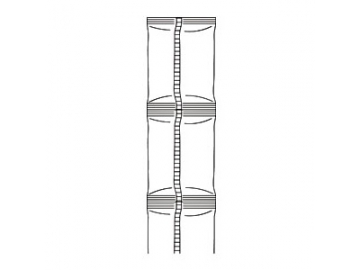

- Linking bag
Specification
| Model | KCH-250X |
| Film width | Max.250mm |
| The bag length | 65 ~ 190mm or 120~280mm |
| Bag width | 30 ~ 110mm |
| Product height | Max.40mm |
| Film diameter | Max.320mm |
| Packing speed | 40-230 packs/ minute |
| Power supply | 220V,50/60HZ,2.4KVA |
| Machine dimensions | (L)670 *(W)3920 *(H)1320mm |
| Machine weight | 400Kg |

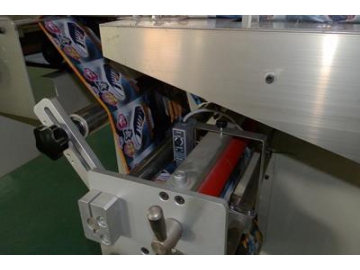

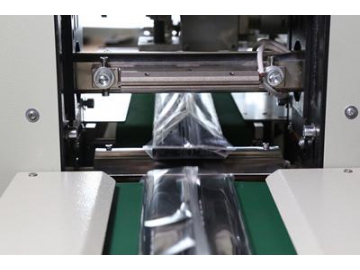

Details
All the parts from the tissue wrapping machine that come into contact with materials are made out of 304 stainless steel, conforming to food safety and health care standards. This offers the machine a stable performance and long service life.
The temperature on the film wrapping equipment is controlled using an independent temperature controller, which suits various packaging materials.
